pencil sinker mold

Recommended Posts

I tried to find a 1oz mold for six months to use for winter steelhead. I ended up finding a brand new one on ebay made by penn. It was pretty expensive. Ive made a few by drilling out aluminum blocks that were clamped together, with limited success. I have a 1oz mold and also have the do it mold that makes 1.25, 1.75, 2.5. Let me know if you want me to pour you a bunch, can't part with the mold however. We can work something out.

Link to comment
Share on other sites

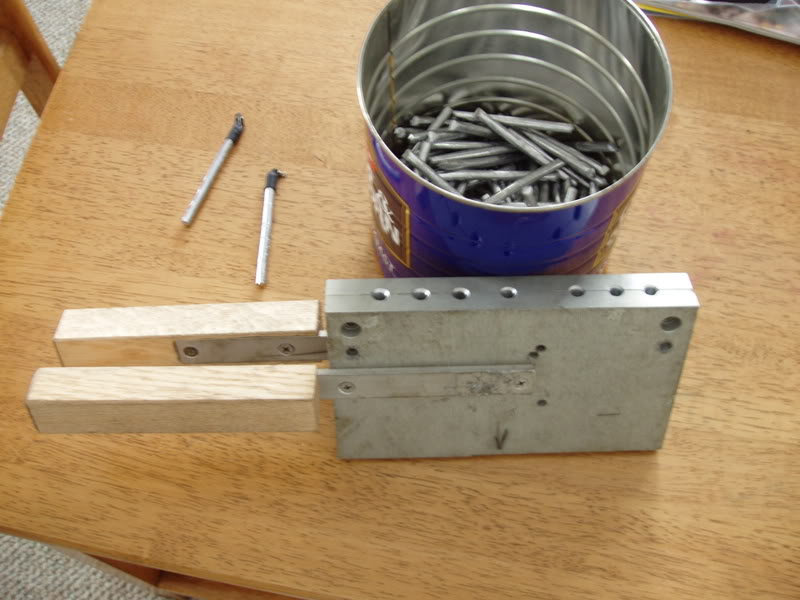

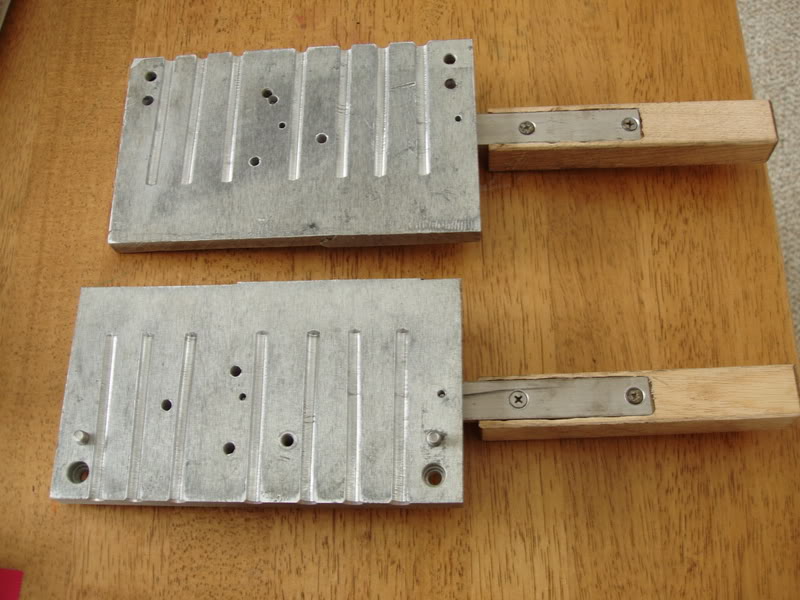

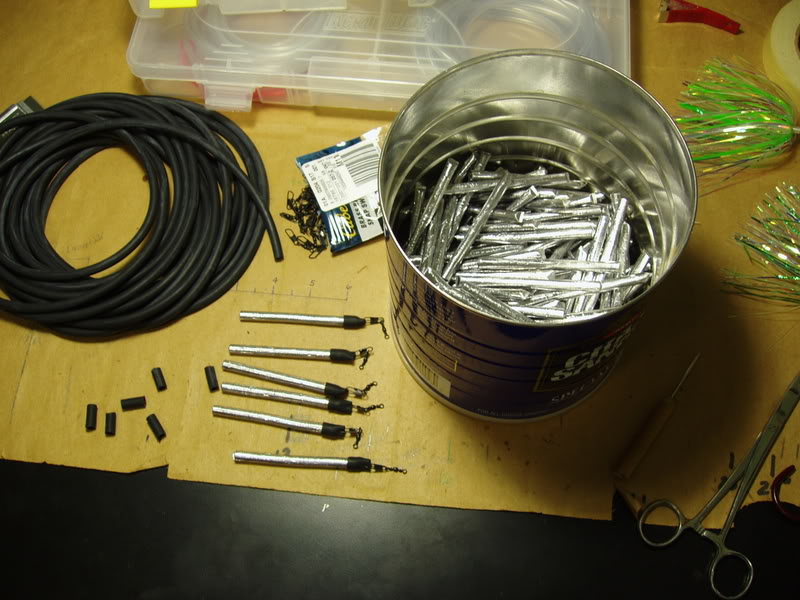

Emty, I made a mold and it worked real well. I drilled plate AL with a 1/4" bit, 3" deep. I didn't use wire forms but rather latex tubing and a swivel for an attatchment point. Bought the latex tubing thru http://www.mcmaster.com/ product # 5234k972. I also bought #5234k72 for making black dipsey snubbers. I weighed the pencils on a powder scale and they were a few grains +/- of an ounce. The trick with making the mold is keeping the holes perfectly centered on the seam. A little off center and the pencils come out of the cavities harder. 2 of my cavities are a little troublesome, the other 5 they fall right out. If I made another one I would start out with a smaller bit and shim the 2 plates with washers to keep a small gap that would help guide the bit. Then remove the washers clamp tight and drill out to 1/4". This one works good enough though that I don't need to refine it.





Link to comment
Share on other sites

The molds I've made are similiar to the one MANIAC has shown. Its more work but much more satisfying when you use a sinker that you made the mold for. It seems like MANIAC has got you on the right track. The only problem I ever ran into was the bit binding from all the debri the bit pushes up. The idea of the spacers is great. Go slow and think ahead. I made one perfectly symectrical, then tried to make a cavity for the brass eyelets and ruined it.

Link to comment
Share on other sites
