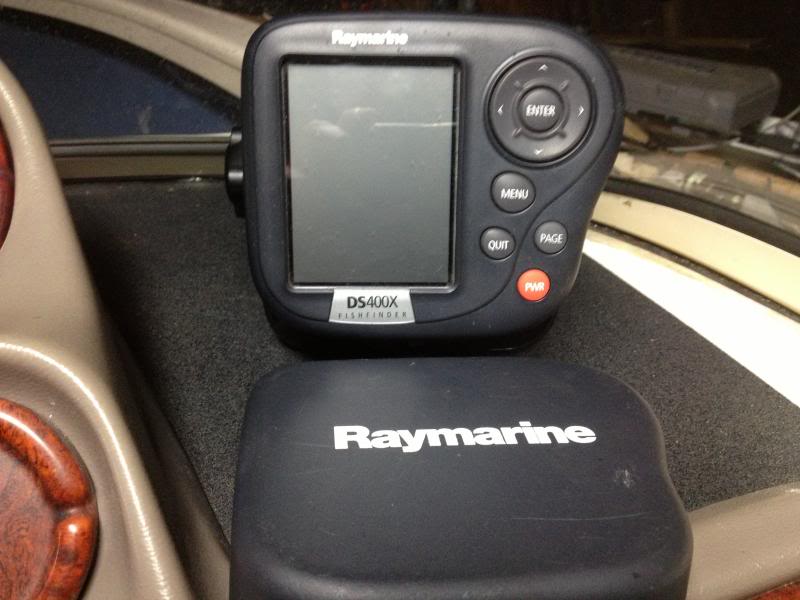

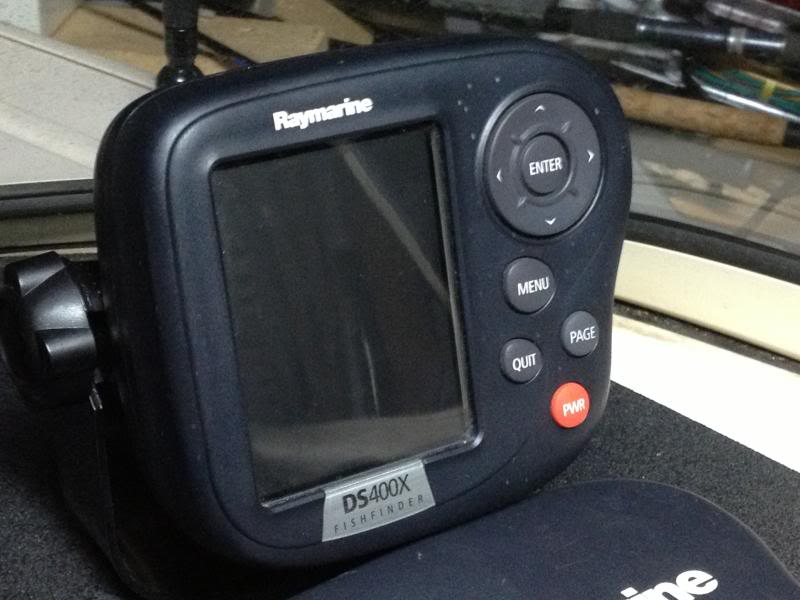

Sold / Closed Raymarine DS400X Fish Finder


Recommended Posts

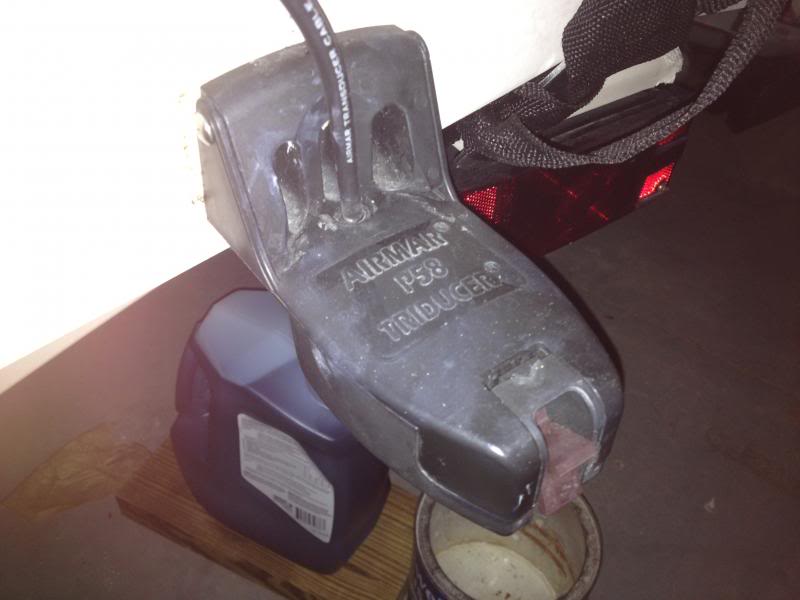

This is a great compact unit that I've used on my boat for a few years.  I have a new smaller boat and need to get a FF/GPS combo because of space.  It marks fish/baitfish and cannonballs excellent and you can see fish come into your spread on the screen.  Its small and compact and has a 200 kHz/ 50 kHz Triducer (Airmar P58).  Being that its a piece of electronics, I'll take it back for full refund within 30 days if it doesn't function.  I used it 2 weekends ago, and know that it does.  $200 shipped.







Edited by All Niter
Link to comment
Share on other sites

guys, you will be hard pressed to find a fish finder with these features for $200.00.



I'll drop to $180 shipped.

  • Bright 256 color Sunlight Viewable TFT display
  • Submersible to IPX7 standard (1m for at least 30 minutes)
  • Dual frequency 200/50Khz for excellent inshore and offshore performance
  • Hands free,fully automatic HDFI digital technology adjusts more than 220 sonar parameters per second
  • NMEA 0183 interface receives GPS waypoint and position data
  • 500 Watts output power

Features

  • A-Scope Mode Sonar returns in real time
  • Backlight Display and Keypad
  • Bottom Coverage Display Digital Indicator display of the diameter of the seabed based on depth and transducer beam angle
  • Data Displays Speed,Water Temp,Vessel Battery Voltage, Trip Log
  • Max Depth 2000' (600m).Note:Actual depth performance may vary due to water, seabed and vessel characteristics.
  • Mounting bracket or optional console mount kit
  • Navigation Display Position, bearing and range to waypoint, SOG,COG,TTG and time. (Requires input from a NMEA 0183 compatible GPS)
  • Sonar Receiver Type Patented Raymarine HDFI digital receiver
  • Temperature Display Includes historical temperature graph
  • Zoom Mode 2X,3X or 4X Magnification Manual or Auto zoom control

Specifications

  • Dimensions 5.0" (127 mm) x 5.88" (149.4 mm) x 3.17" (80.5 mm) bracket mount
  • 4.45" (113 mm) x 5.12" (130 mm) x 1.30" (33 mm) dash mount
  • Display Resolution 76,800 pixels (320 x 240 pixels,1/4 VGA )
  • Display Size 3.5"
  • Display Type Sunlight Viewable 256 color TFT (Thin Film Transistor)
  • Frequency Dual 200/50 Khz
  • Interfaces NMEA 0183 Input / Output
  • Operating Temperature Range +14°F to +122°F (-10°C to +50°C)
  • Output Power 500 Watts RMS
  • Power Requirements 10-18 Volts DC (13.8V nominal)
  • Waterproof Submersible to IPX7,submersible to 1m for at least 30min.
  • Weight 1 lb (.45kg)
