Grady White Bimini 220 Transom Replacement

Recommended Posts

Posted (edited)



I'm replacing Transom. 1983 boat. All the plywood is soaked and much of it is rotten. I cut away the inside bucket. A good tutorial on this same boat can be found here: http://bateau2.com/howto/transom_repair/index.php     I am following the same process.



I also did another complete transom and floor in another boat that I posted to this forum too.



For this Grady White, I  Ripped out all the old fiberglass and plywood. Made new plywood using 3/4 marine grade. Drilled all holes oversized and filled resin to prevent future rot. Pictures will be posted in comments because the website did not allow me t post pictures from phone on this title page. Check back because I will be posting pictures as I go.





Sent from my moto z3 using Lake Ontario United mobile app












Edited by garrymny
fixed model number in title.
  • Like 1

Share this post


Link to post
Share on other sites

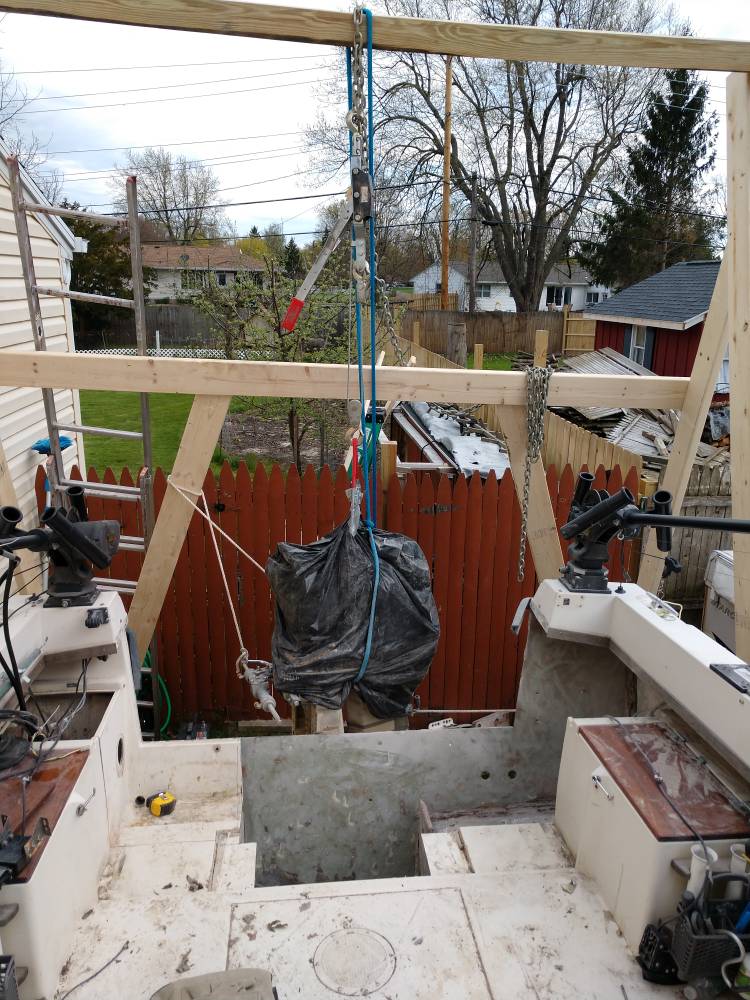

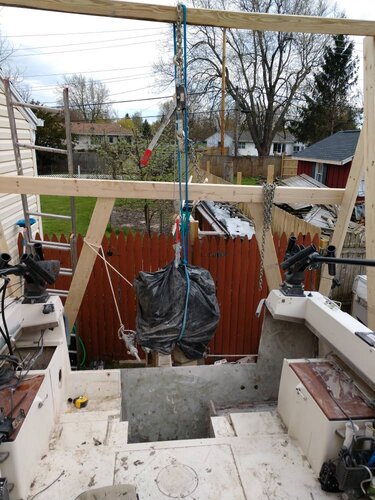

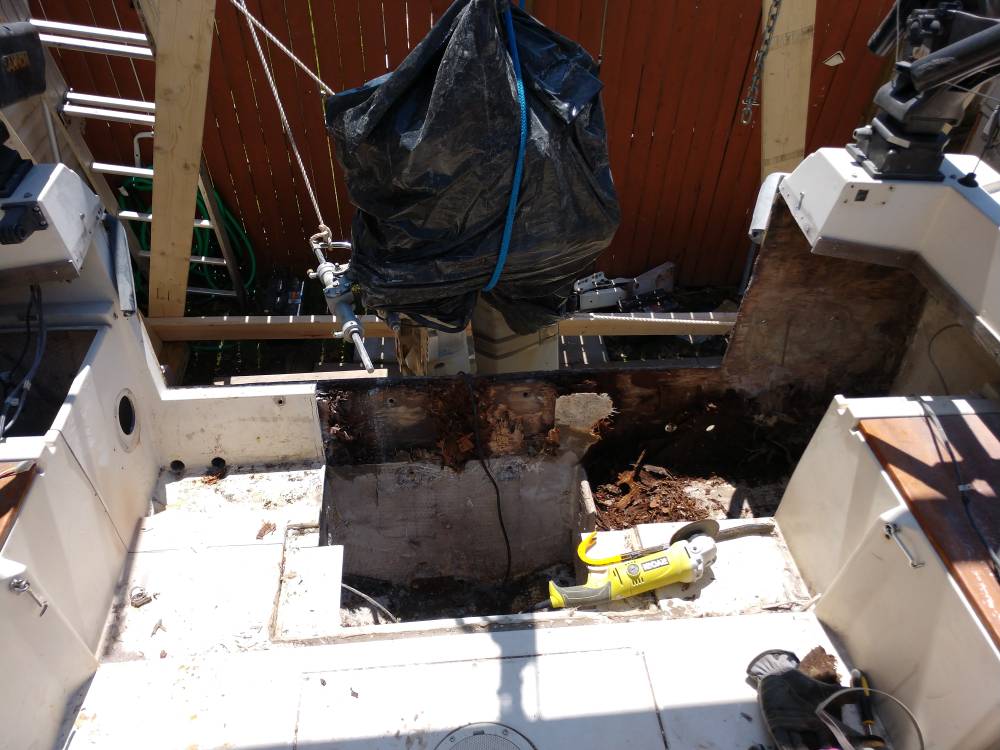

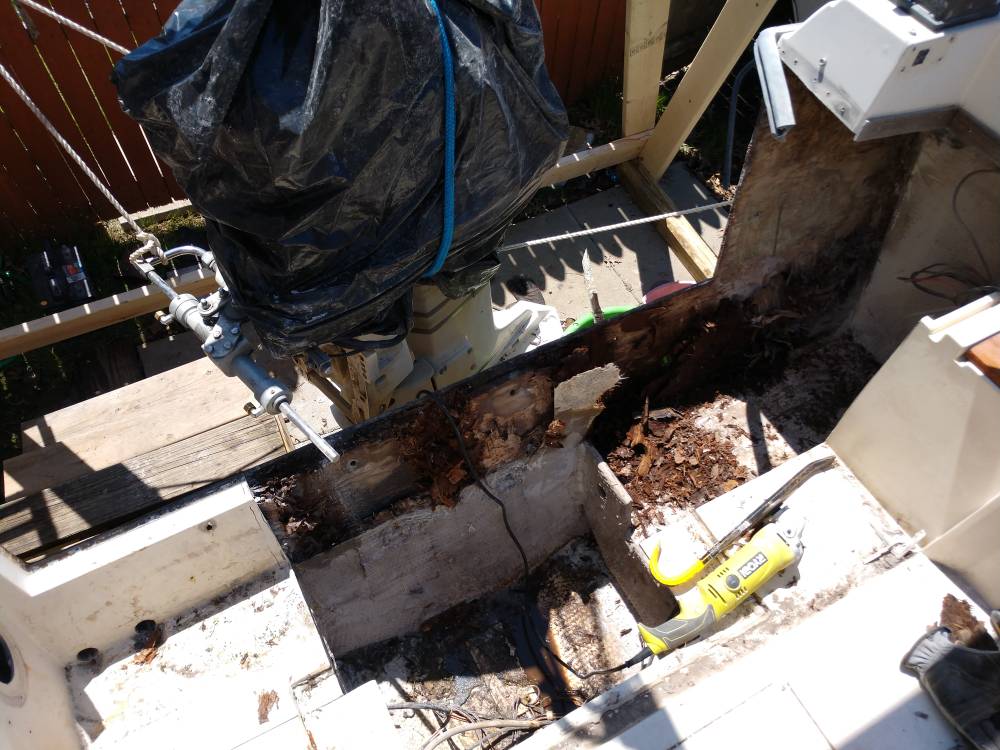

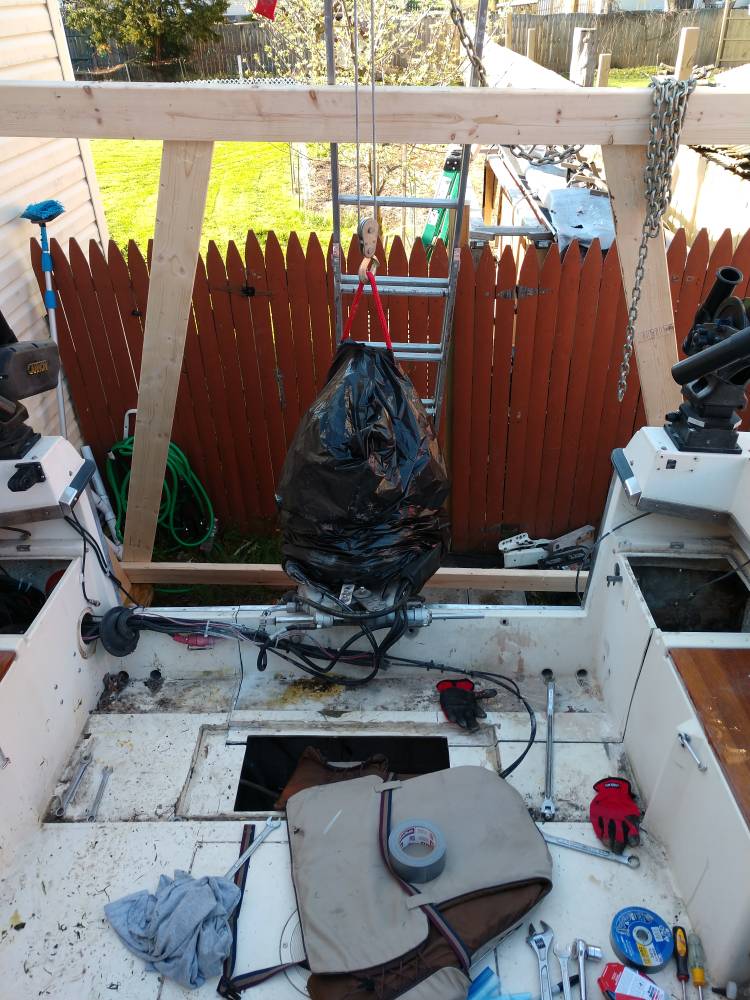

I guess I will have to load pictures by replying to my own post. Here are some pictures. I had to build a frame to allow hoisting the engine. You can see the cuts in the inside bucket. You can see the rotted plywood being removedIMG_20190506_082902606.jpegIMG_20190506_131144244.jpegIMG_20190506_131150103.jpeg

Sent from my moto z3 using Lake Ontario United mobile app

  • Like 1

Share this post


Link to post
Share on other sites

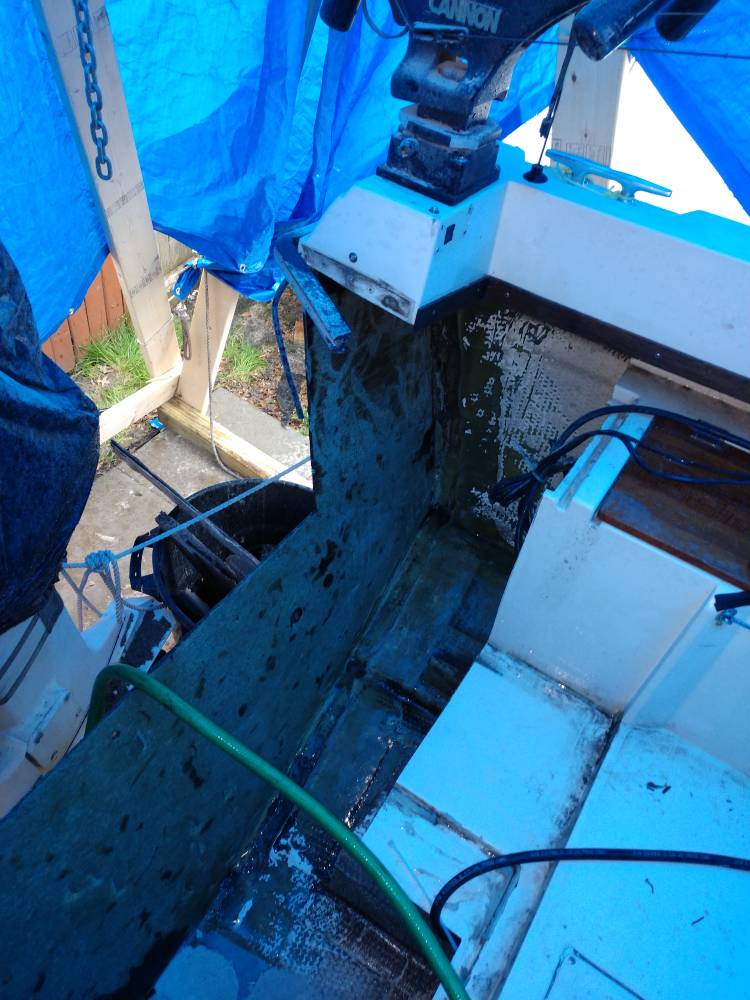

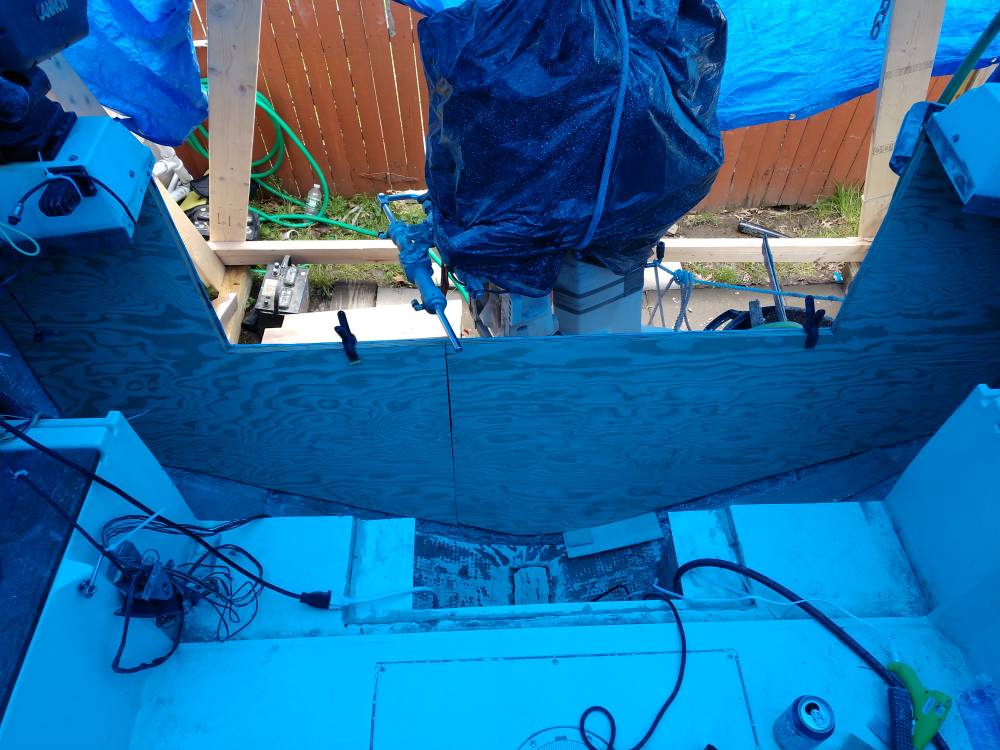

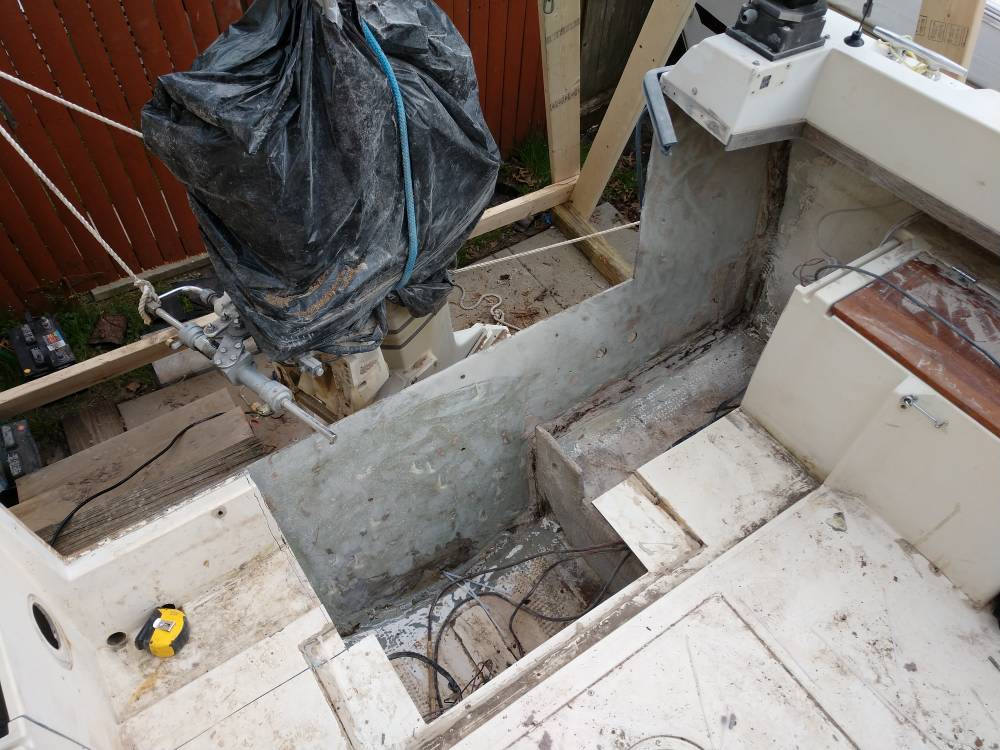

Here you see the right side cleaned out. I then had to remove the secondary floor so I could expose the transom all the way to the floor. The blue tint to the pictures is because I had to put a Huge tarp over everything with our terrible weather.IMG_20190506_171757296.jpegIMG_20190506_171816503.jpegIMG_20190509_174832600.jpegIMG_20190511_132411320.jpeg

Sent from my moto z3 using Lake Ontario United mobile app

  • Like 1

Share this post


Link to post
Share on other sites

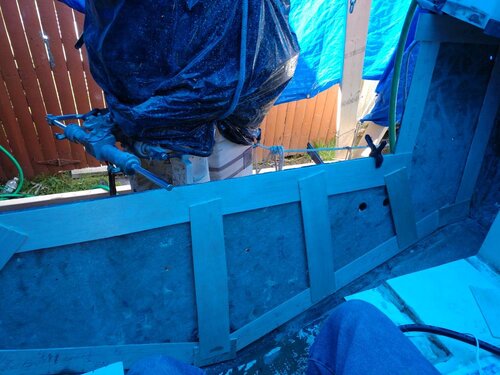

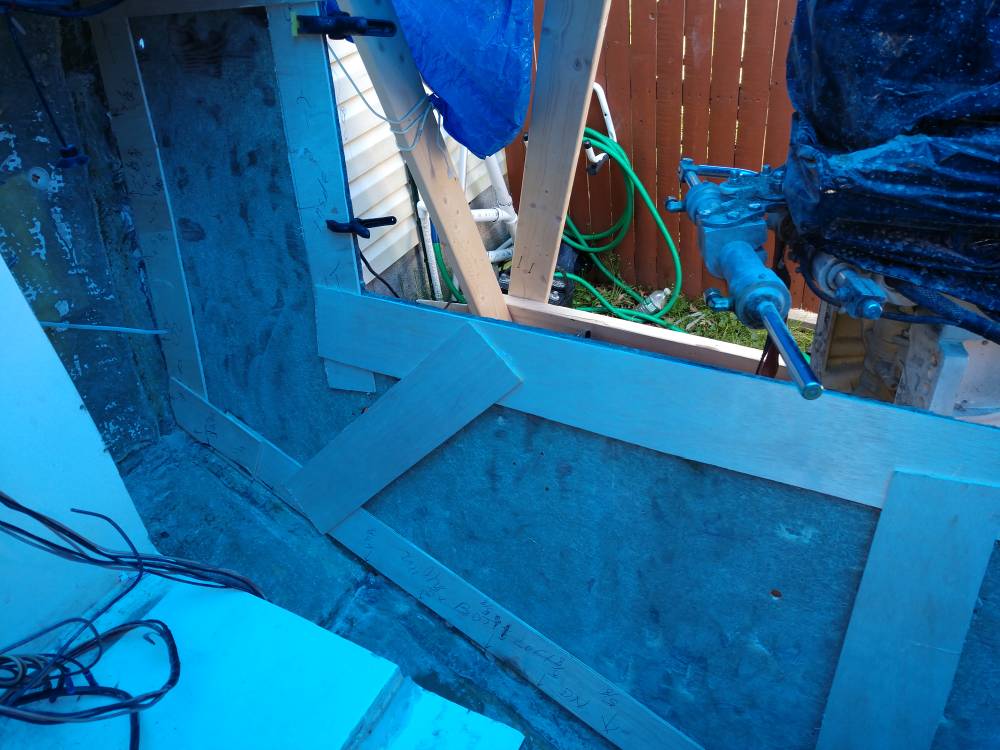

In the last reply you can see the plywood made and dry fit. Here you see how I made a template using strips of 1/4 inch luan and a hot glue gun. Unfortunately I had to end up making each layer of plywood out of two pieces. A single piece could not be placed in there. So it is 3 layers of 3/4 inch plywood. Each layer consists of two pieces, a left and right. I staggered the cuts. IMG_20190511_095818469.thumb.jpeg.3b39bee8af81e8f580a306cfdfb3ecd8.jpegIMG_20190511_095809412.thumb.jpeg.57efc0769fd1385cfccdc65e6ce29eb9.jpeg



Sent from my moto z3 using Lake Ontario United mobile app









  • Like 1

Share this post


Link to post
Share on other sites

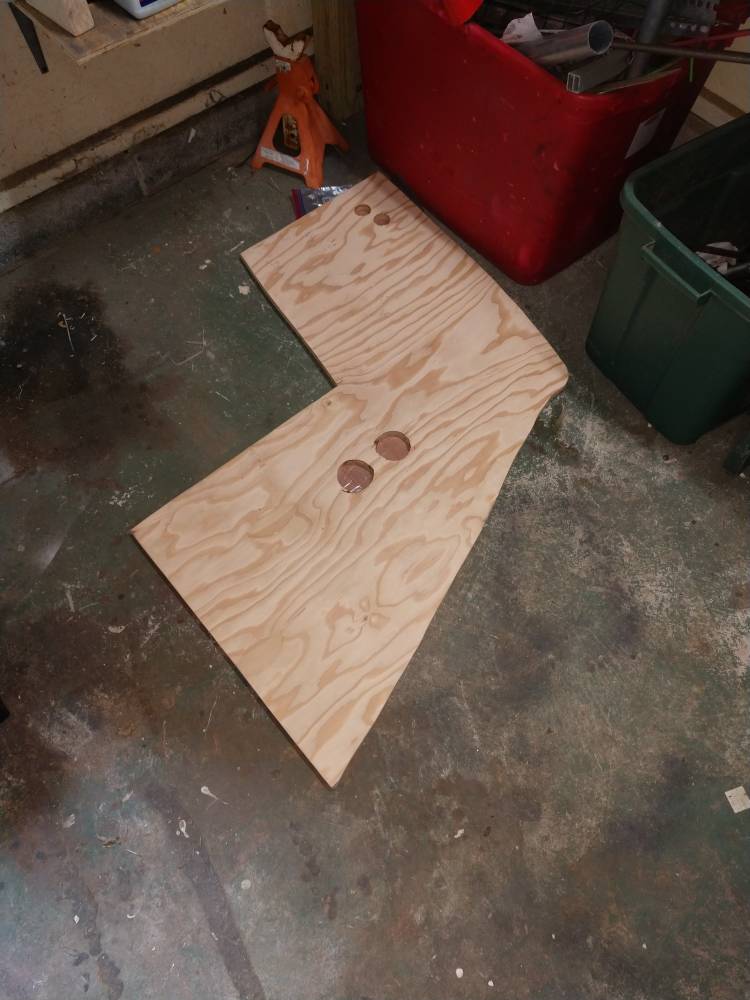

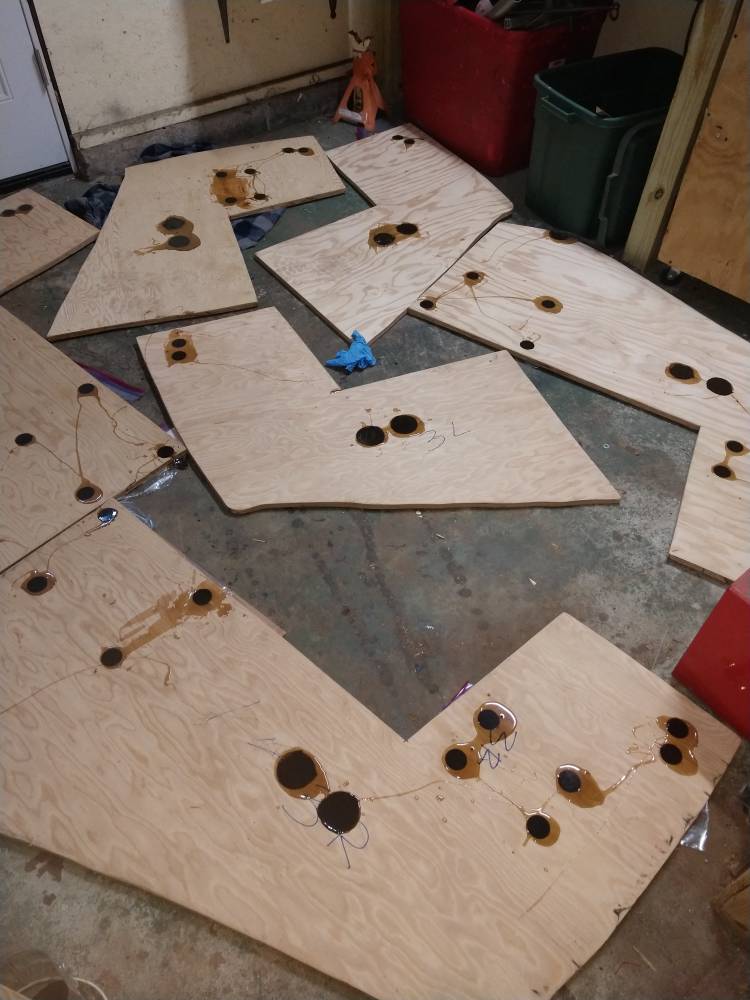

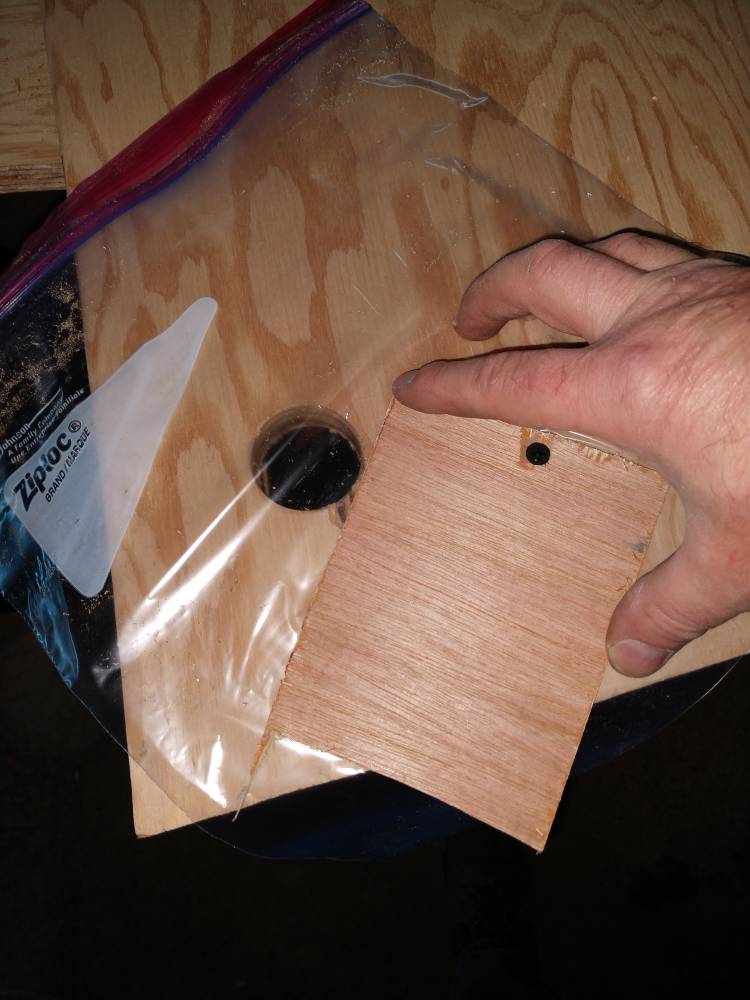

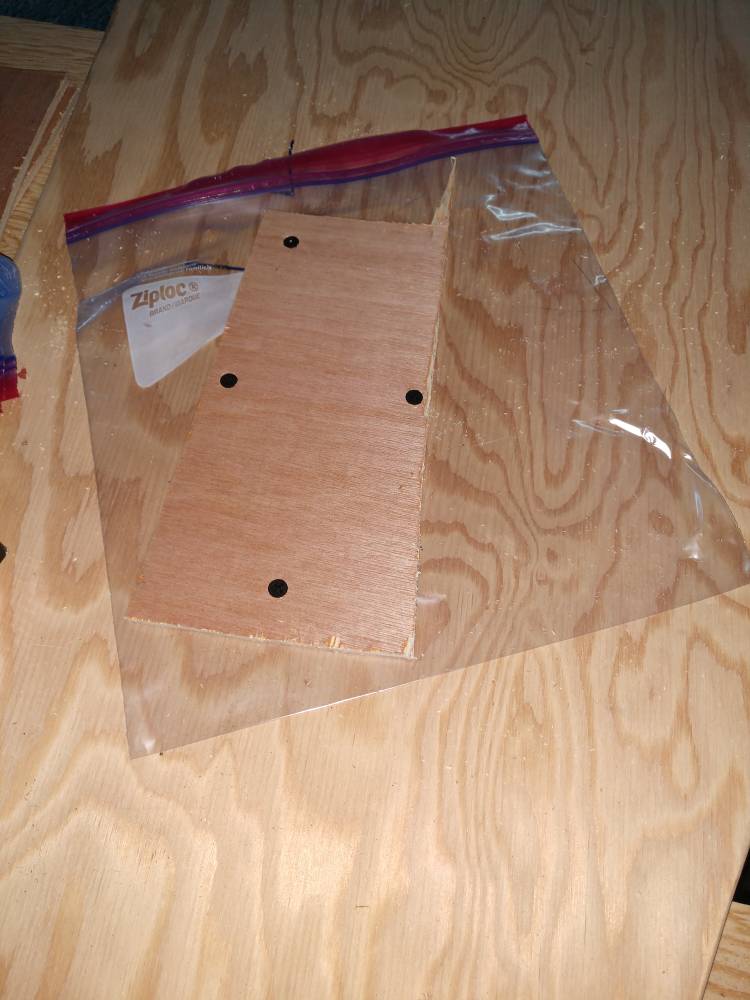

After dry fitting all 3 layers I clamped them in dry. Then I drilled pilot holes through the scupper holes, bilge drain, out board mount, kicker bracket, and tow connectors. Then I removed the plywood, over size drilled every hole, applied a zip lock bag and quarter inch piece of luan to act as a backer. Then, I filled every hole with resin. This way even when the holes leak, the water will not contact plywood, only resin.IMG_20190512_141433930.jpegIMG_20190512_141415553.jpegIMG_20190512_142816711.jpegIMG_20190512_162148182.jpeg

Sent from my moto z3 using Lake Ontario United mobile app

  • Like 1

Share this post


Link to post
Share on other sites

Wow!! That is going to look really good when your done! Now you’ll know what you have, probably better than it was from the factory!

  • Like 1

Share this post


Link to post
Share on other sites

Great job, what a project.


Sent from my iPhone using Lake Ontario United

Share this post


Link to post
Share on other sites

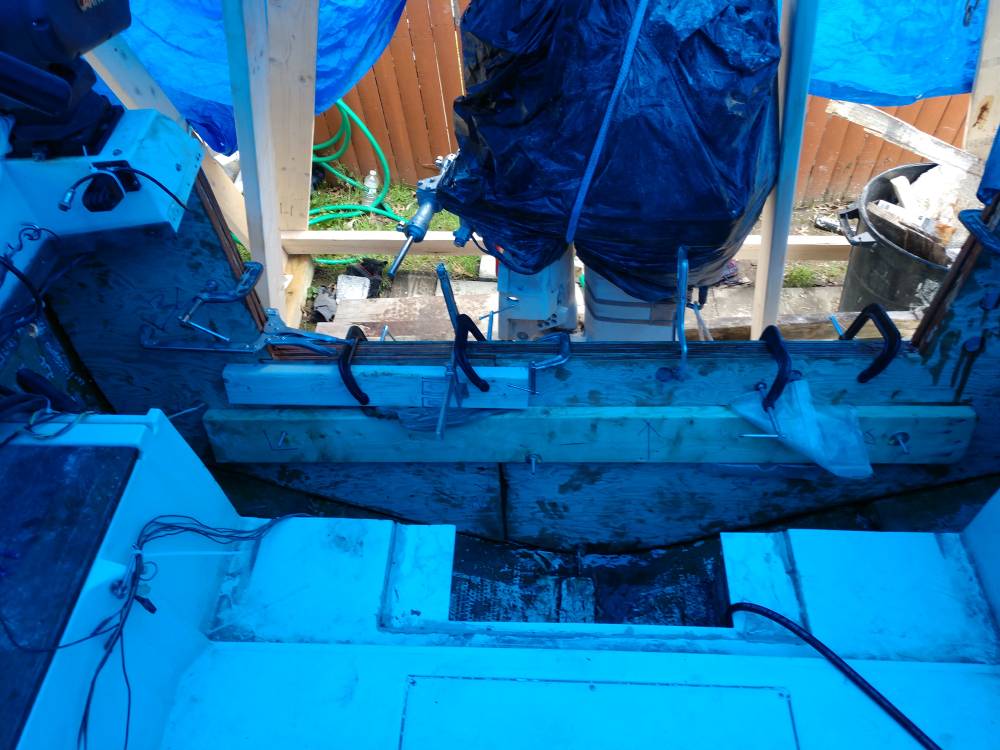

Today, I glued the plywood in and clamped it. I also put 10 bolts through to squeeze it together. I will never use bolts again. It was a big pain getting them through all three layers of plywood. IMG_20190516_161030011.jpeg

Sent from my moto z3 using Lake Ontario United mobile app

Share this post


Link to post
Share on other sites

Before I glued the plywood to the transom, I cut out the 1708 fiberglass to shape. Two layers. One extends 6 inches past the edges. The second extends 9 inches past. I also cut out 45/45 biaxial clothe to tab in the edges of the plywood, before laying on the 1708.



Share this post


Link to post
Share on other sites

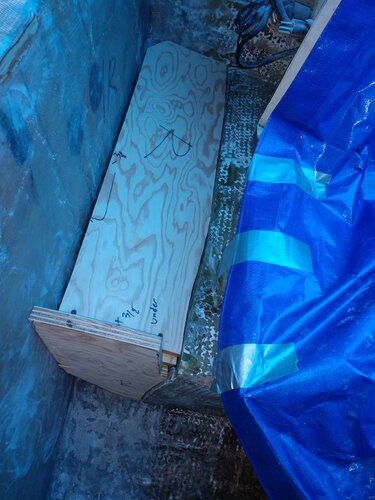

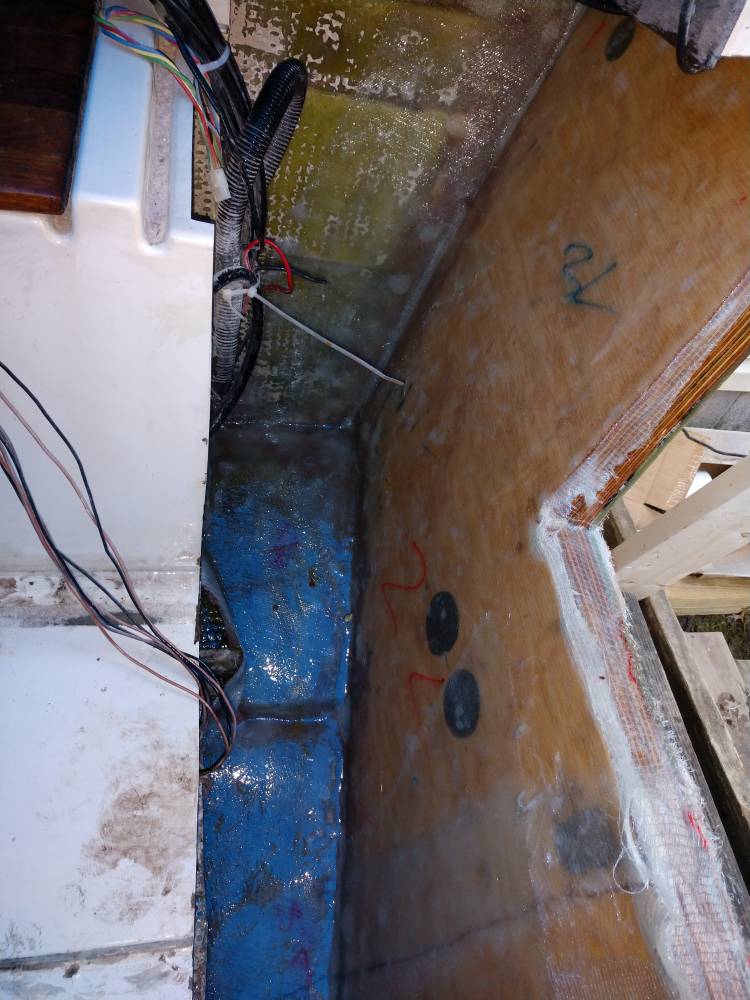

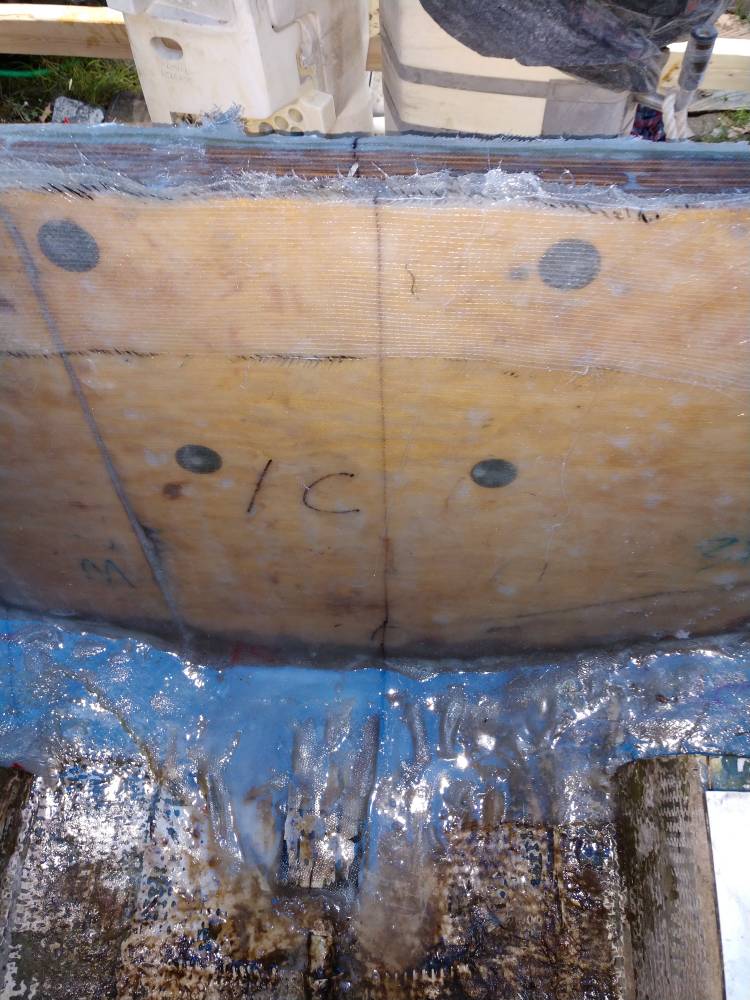

Productive couple of days. I got the Transom glassed in. Next day I made the floor stringers and floor pieces I had cut out. Today, I glassed in the floor stringers and floor. The Lynn Marie is now structurally sound once again!.IMG_20190518_065256683.jpegIMG_20190518_065312485.jpegIMG_20190518_110611119.jpegIMG_20190518_092251149.jpeg

Sent from my moto z3 using Lake Ontario United mobile app

  • Like 1

Share this post


Link to post
Share on other sites

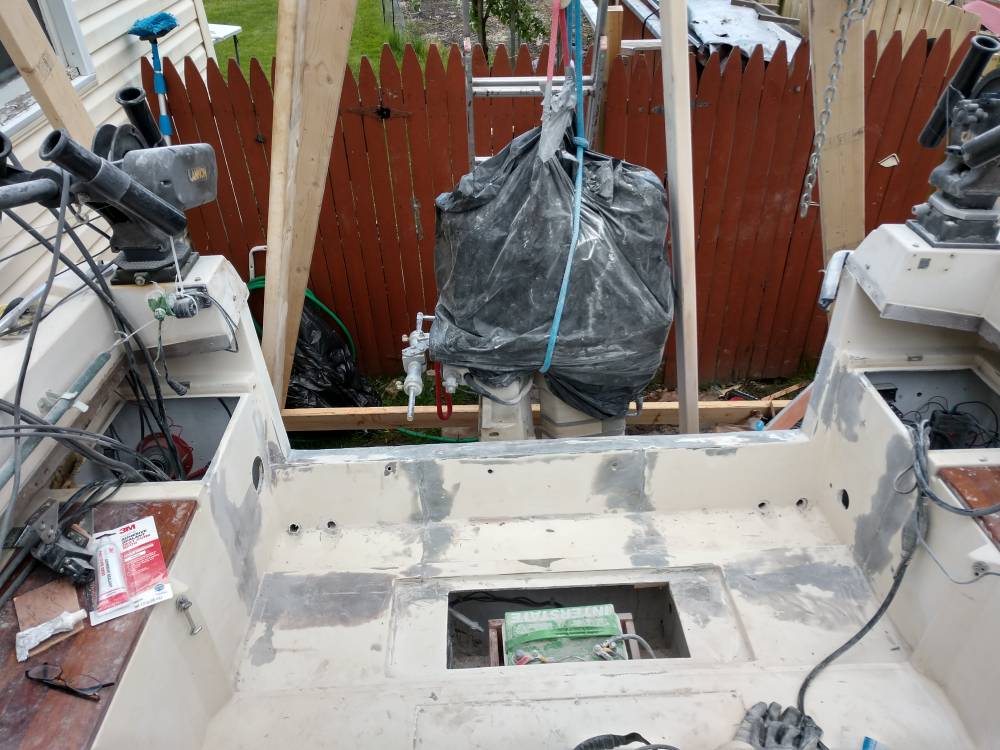

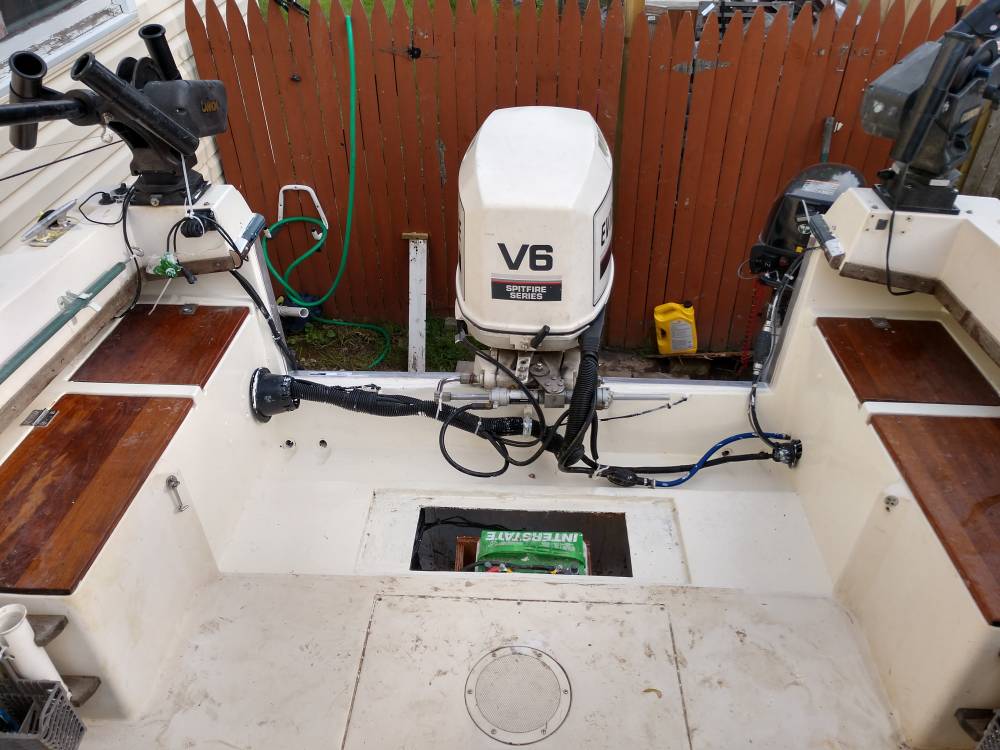

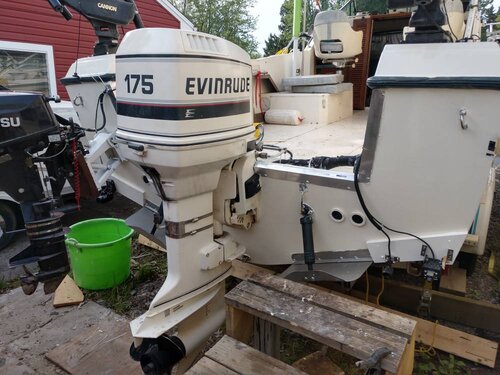

Finally done. Here are some pictures of the inside pieces reattached. I used plywood strips and covered the plywood in fiberglass to reattach them. I used countersunk screws to secure it while it hardened. Then, I used fiberglass Bondo to cover the cut lines. I just have to install the floor panel and the rear door/floor. Thank God this project that started may 8 and took until May 27 is Done. I'm guessing the cost was between 1500- 2000. But I did add a few improvements: third battery, new wires, new fuse panel.IMG_20190523_180929505_HDR.jpegIMG_20190527_174143489_HDR.jpegIMG_20190527_174130711_HDR.jpeg

Sent from my moto z3 using Lake Ontario United mobile app

  • Like 2

Share this post


Link to post
Share on other sites

That looks awesome Garry!! Now get out and chase those salmon!!!

  • Like 1
