Todd in NY

Boat Re-wired & Other Repairs, Before & After

Recommended Posts

Posted (edited)

First of all, I'm not an electrician or a mechanic. My "new to me" boat need some major electrical work and other new equipment, so this is my journey.

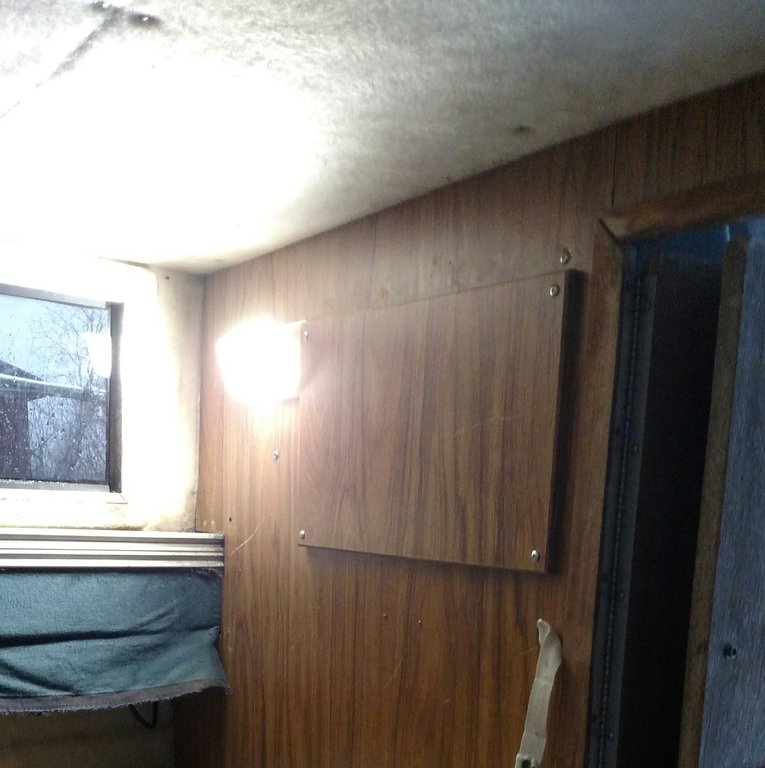

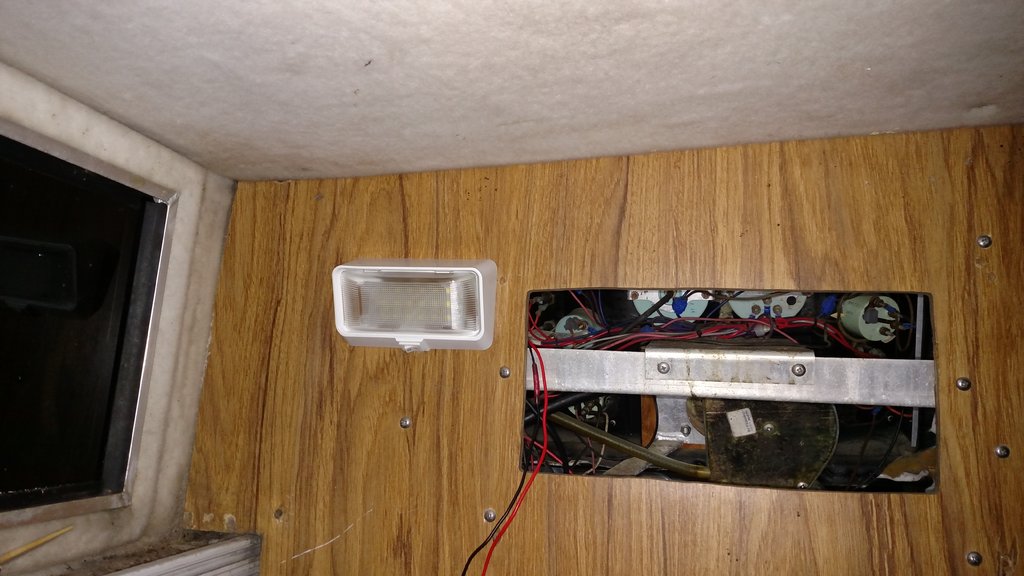

EDITED to add: This is not a boat restoration. But the boat and trailer needed some new parts. I cleaned up, re-route, repaired, replaced and removed wiring throughout the boat to make everything work. I added 2 new fuse blocks, a new 6 circuit switch panel, a new LED light in the cuddy, a new LED "dome" light under the hardtop, and a new LED light in the gunwale. I also added 2 new Exide size 24 marine batteries (not pictured) and an inline 60 amp fuse at the battery switch.



This is my first attempt at re-wiring a boat, and this boat had major electrical problems. I'm happy to say that everything works as it should. Thanks to all who shared their knowledge, experience, and feedback!

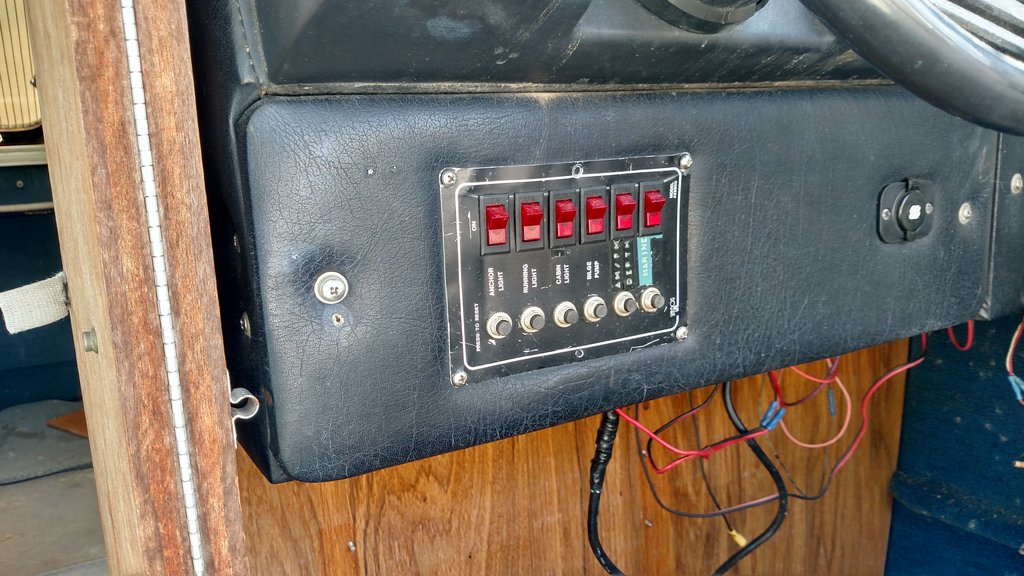

BEFORE; wires hanging down, many of them not connected to anything. This 6 circuit switch didn't work.

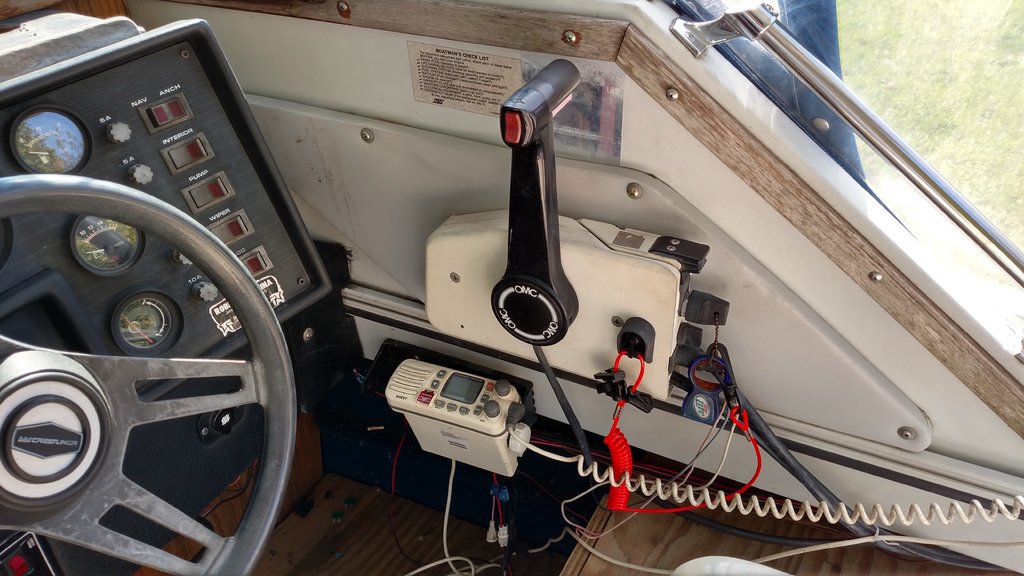

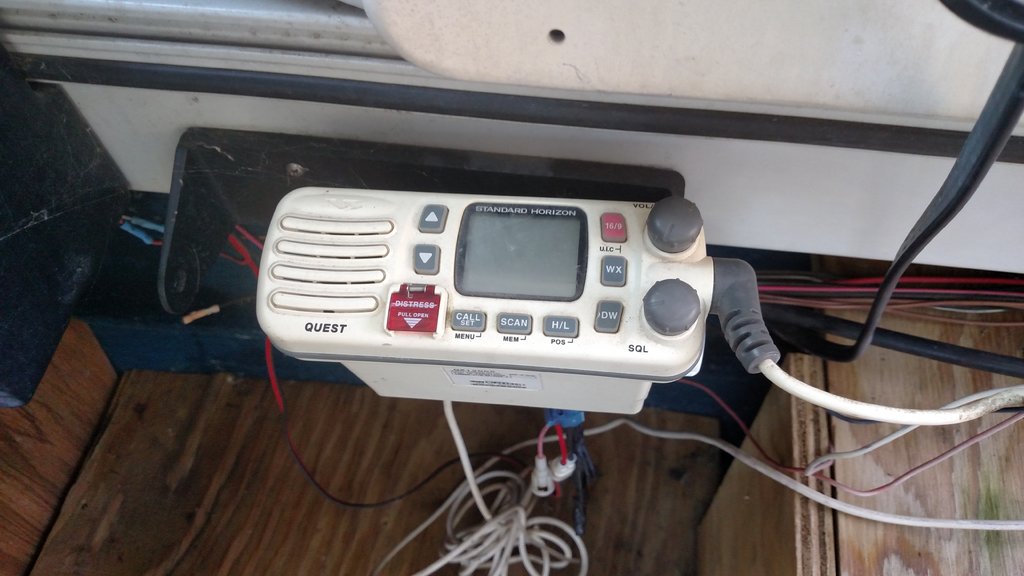

The radio mount was wider than the radio, so the radio was only attached on the right side. The radio didn't work either.

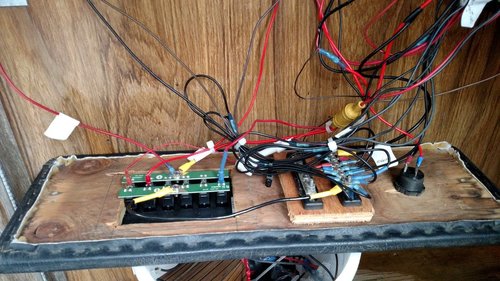

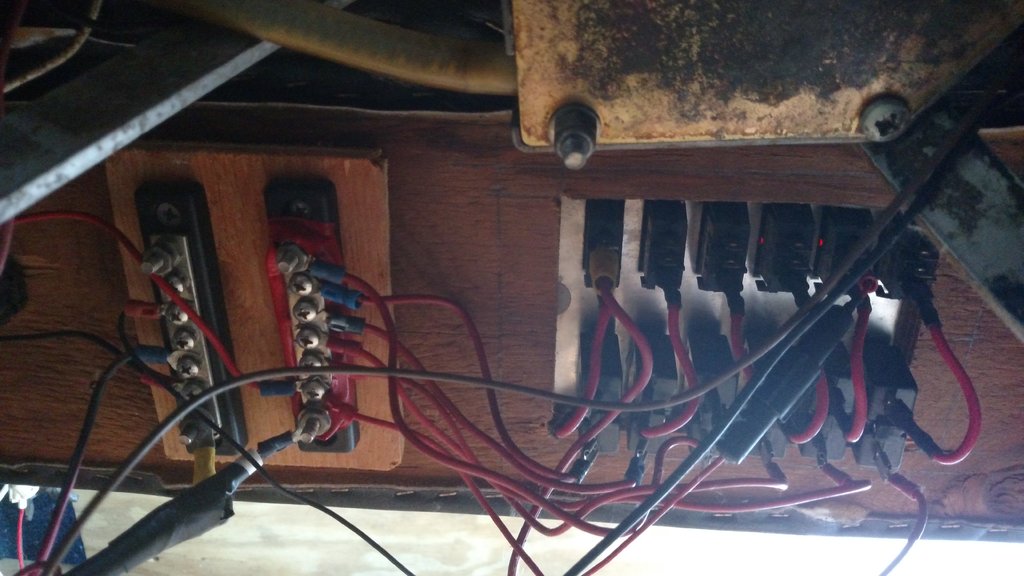

Back side of the lower panel and 6 circuit switch

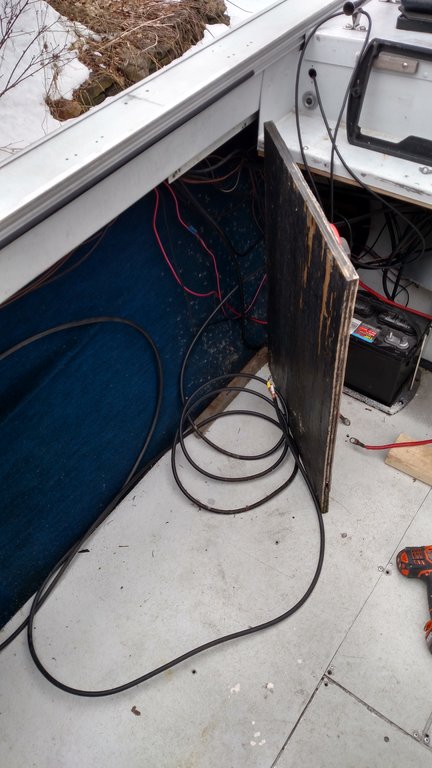

Note the VHF antenna wire coiled up on the floor, and other loose wires

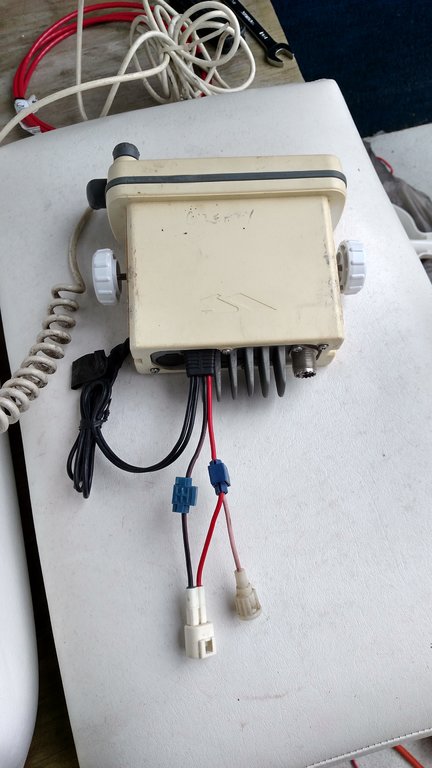

Check out this wire splice job on the radio. No, it didn't work...

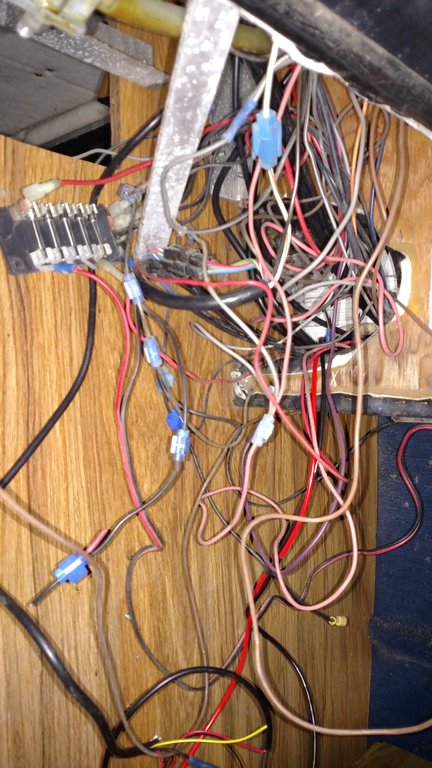

This only shows a portion of the mess at the helm. This fuse block was too corroded to work. Most of those blue connectors are ground wires spliced together.

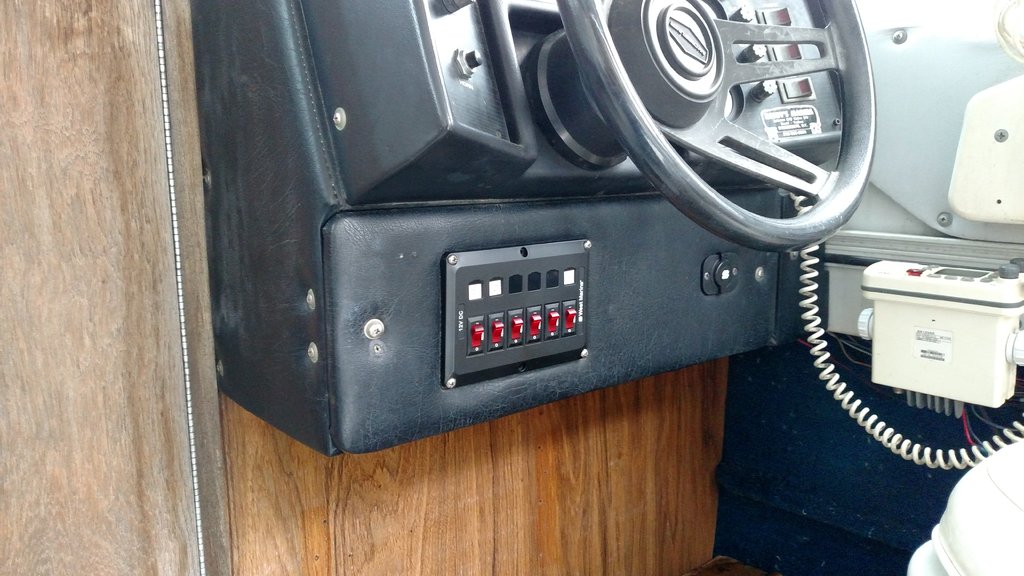

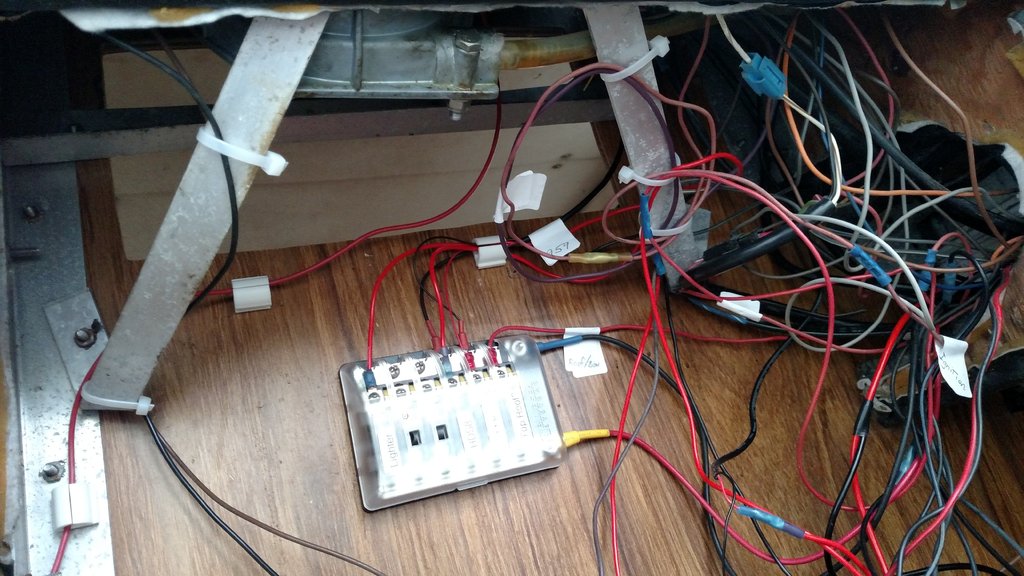

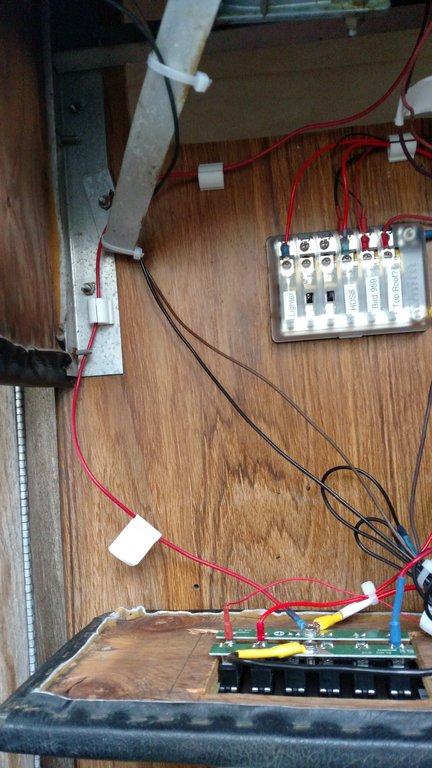

AFTER; new helm fuse block and 6 circuit switch panel

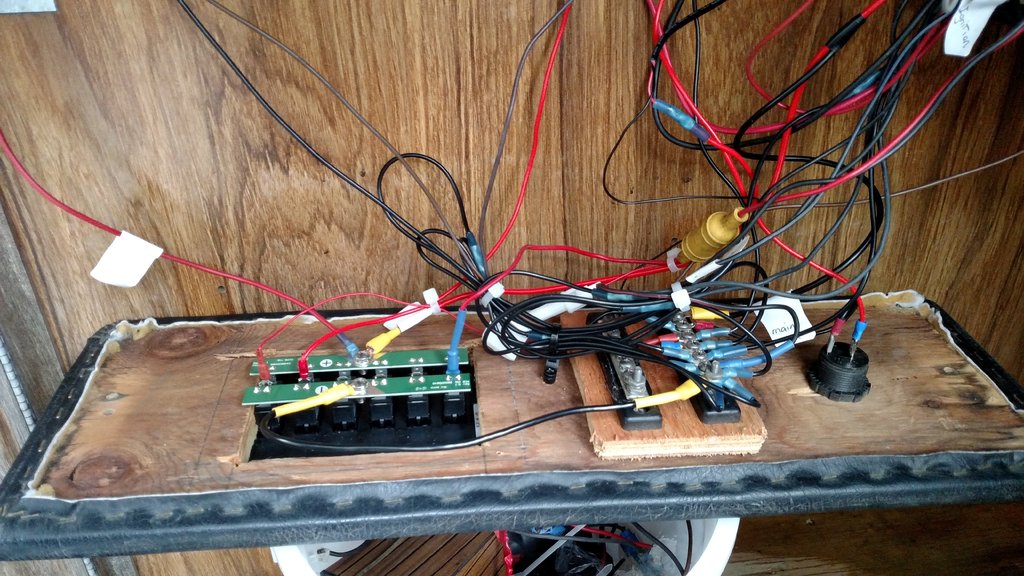

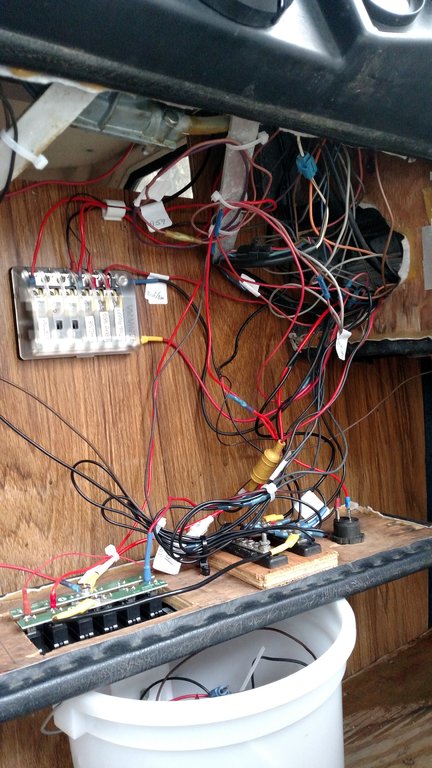

I left these wires long enough to be able to remove this board and rest it on a bucket, to have easier access to the wires and fuses. I zip tied what I could, but I wasn't trying for that "show boat" wiring with no extra wire for future repairs.




Most of the wires on the right are for the various factory installed instruments, gauges, and rocker switches on the helm, so I zip tied them and their slack where I could




Not going to win any awards for this wiring job, but everything WORKS, to include the old VHF radio, so that's my reward :yes:




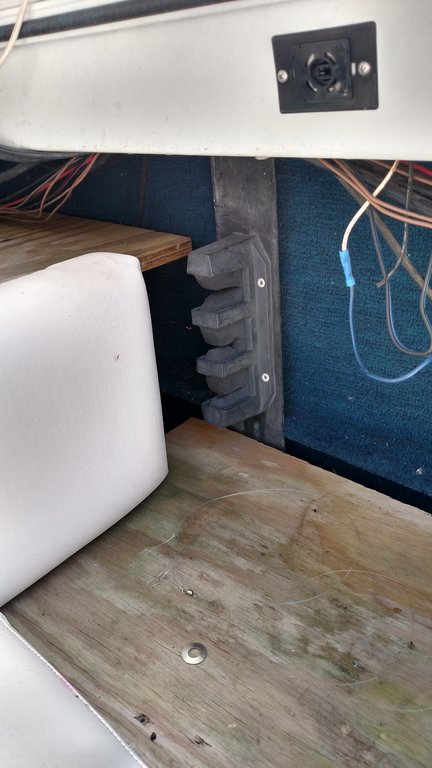

The finished assembled helm, and with the correct VHF mounting bracket.


Edited by Todd in NY
Added info

Share this post


Link to post
Share on other sites
19 minutes ago, Fishstix said:

Electrical issues should be posted under Current Events :rofl:



where's an emoji for "groan...." when you need one?

  • Like 1

Share this post


Link to post
Share on other sites
2 hours ago, FISH_HUNTER said:

Nice work bud!!

You wanna come do mine now? LOL



Thanks! If you lived a little closer I would help you with your boat.

Share this post


Link to post
Share on other sites
1 hour ago, Fishstix said:

Electrical issues should be posted under Current Events :rofl:



I see your angle, and it's not far fetched at all, because now I have electrical current everywhere it's supposed to be :lol:





Share this post


Link to post
Share on other sites
1 hour ago, Gator said:



where's an emoji for "groan...." when you need one?



The emoji creators might screw up and turn it into a "groin" emoji instead of "groan" :thinking:

Share this post


Link to post
Share on other sites
Posted (edited)

I'll post pics of the transom area wiring later today, with the new fuse block and 4ga battery wiring.



All that factory wiring for the instruments and gauges is a tangled mess, and the only way to "clean" that up would be to cut each wire, re-route them and then re-connect them. That's way beyond my goals for this boat.



Thanks for the kind words!

Edited by Todd in NY

Share this post


Link to post
Share on other sites
Posted (edited)

Ok, I finished the stern wiring yesterday. So here are some BEFORE pics:






Starboard gunwale wiring, and old gunwale light

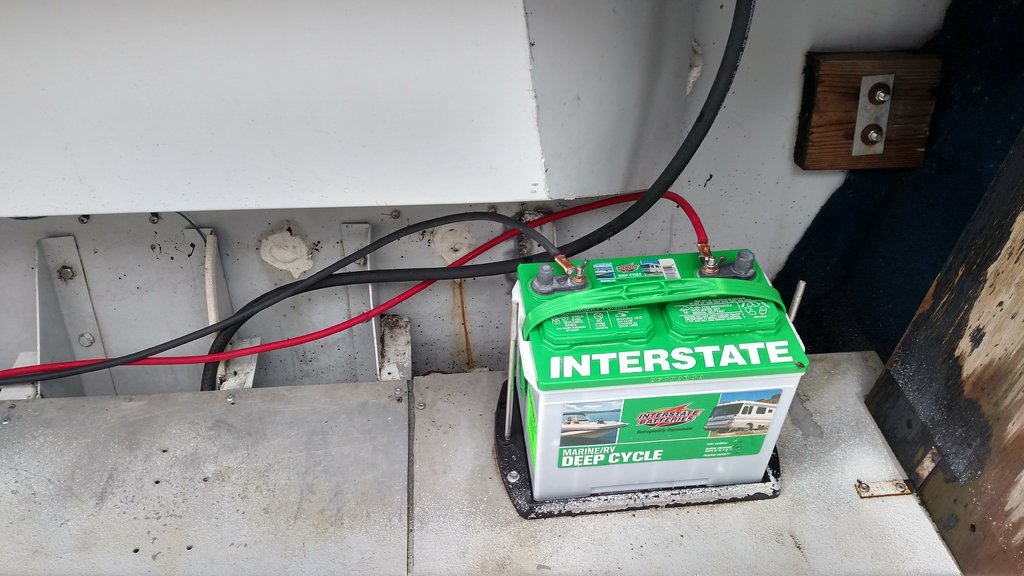

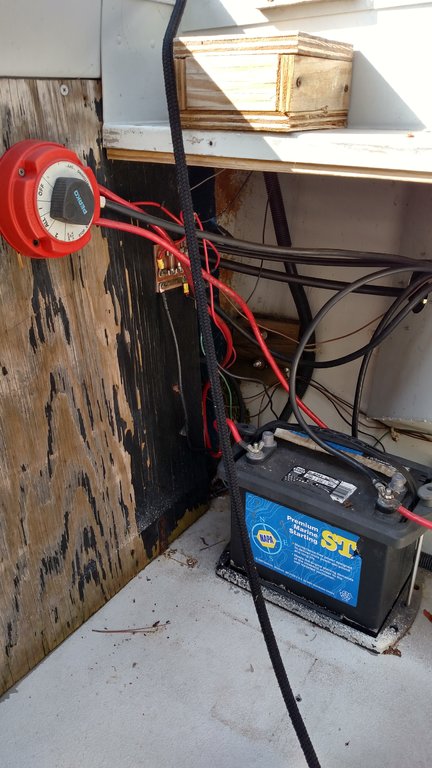

Guess which red wire is on the negative battery terminal... Both batteries were 8 or 10 years old




What's behind door number 1?

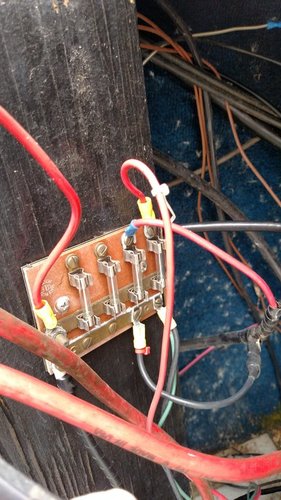

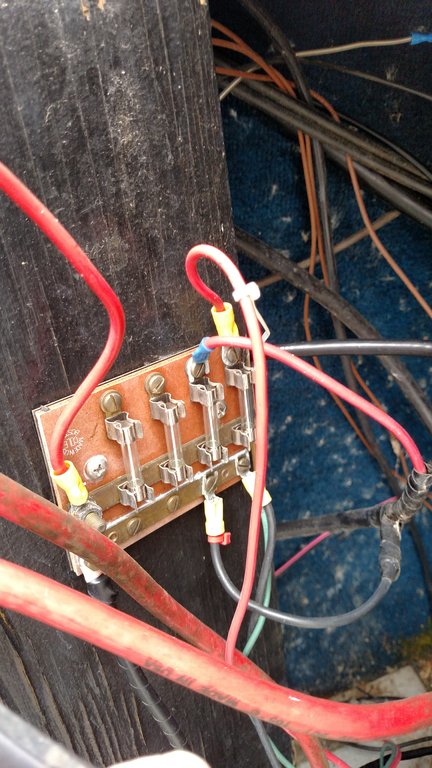

The old stern fuse block

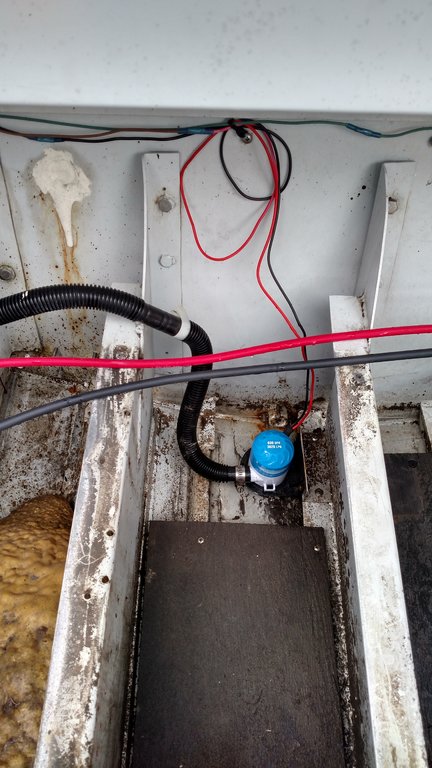

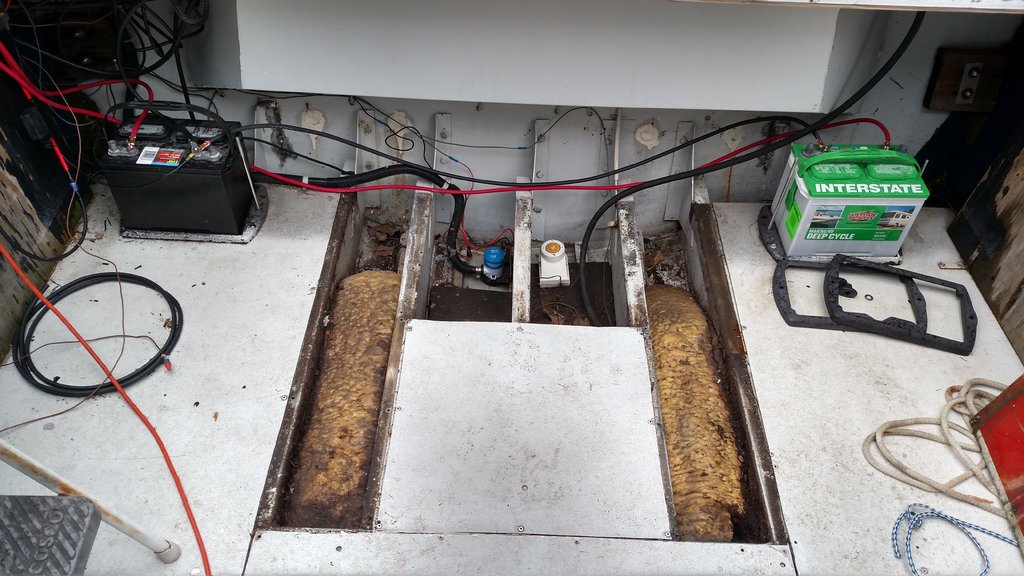

The bilge area before I cleaned it out and finished the wiring repairs. Note the vintage AFS2000 float switch (white/yellow, not hooked up)




Now the AFTER pics:



No more AFS 2000

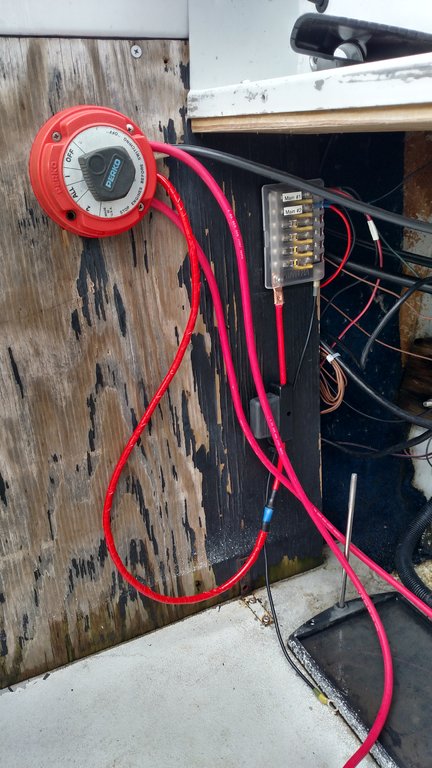

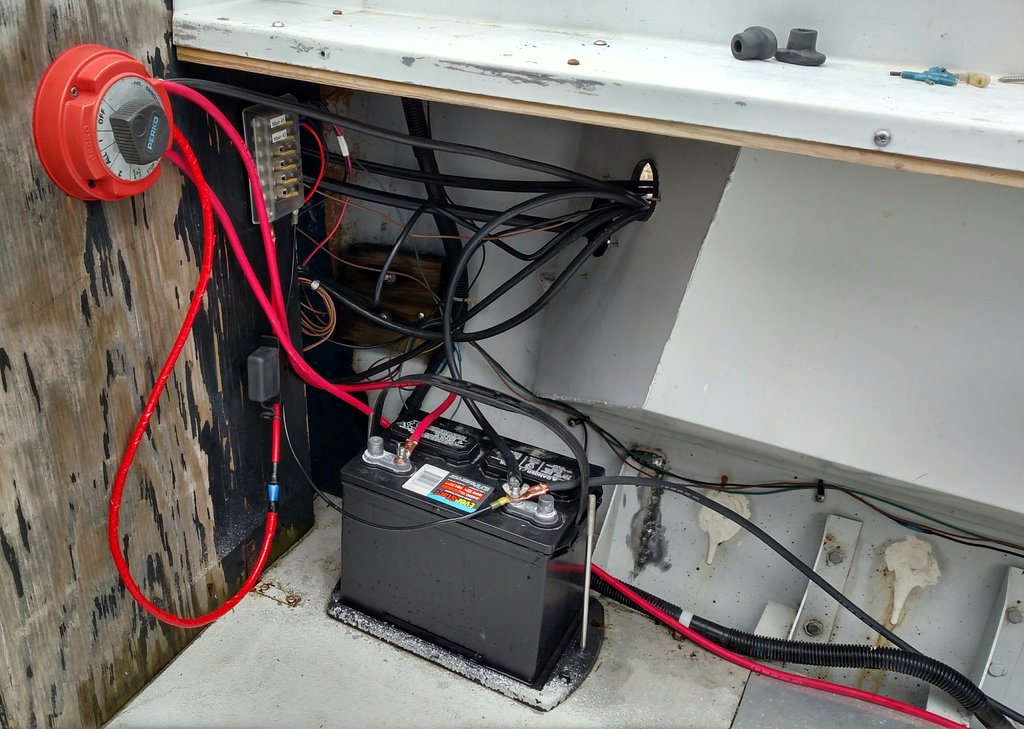

New 4ga wire

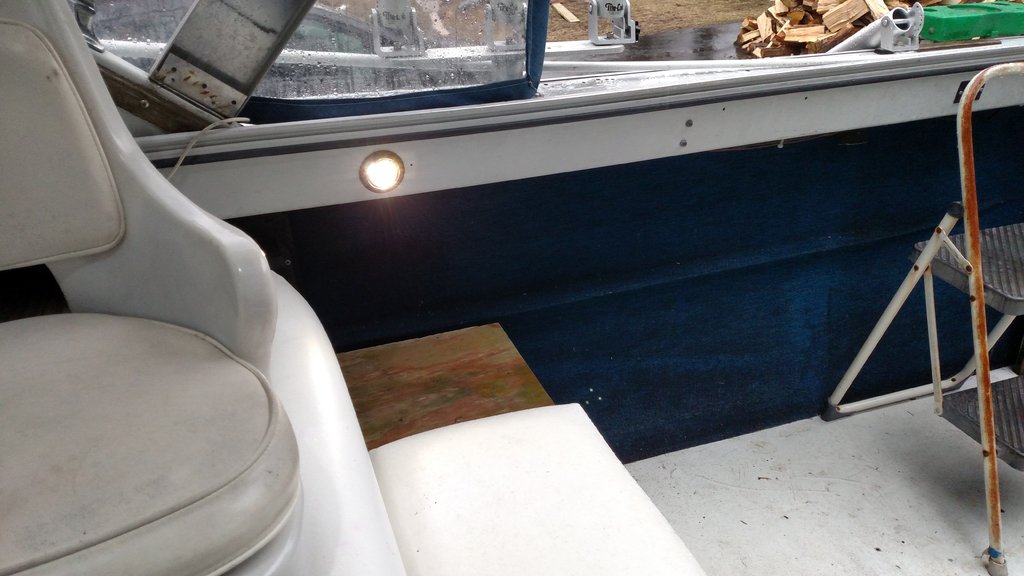

Light on, cover on




Thanks for looking!

Edited by Todd in NY
  • Like 1

Share this post


Link to post
Share on other sites

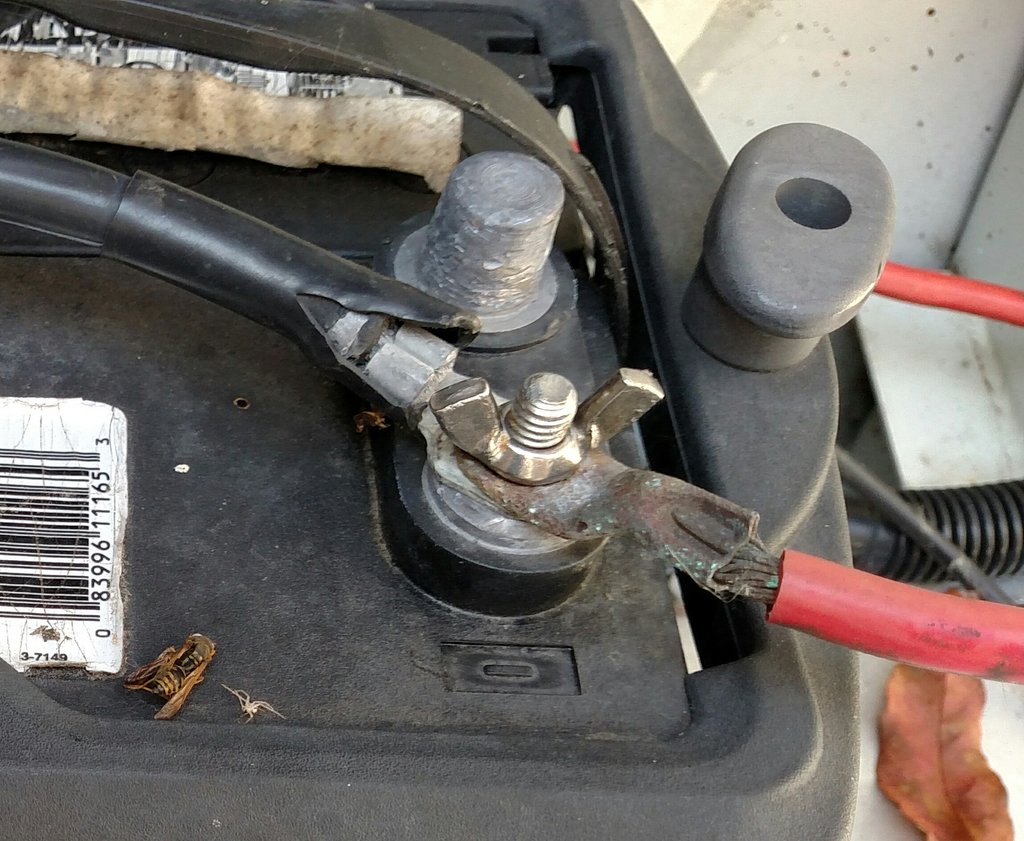

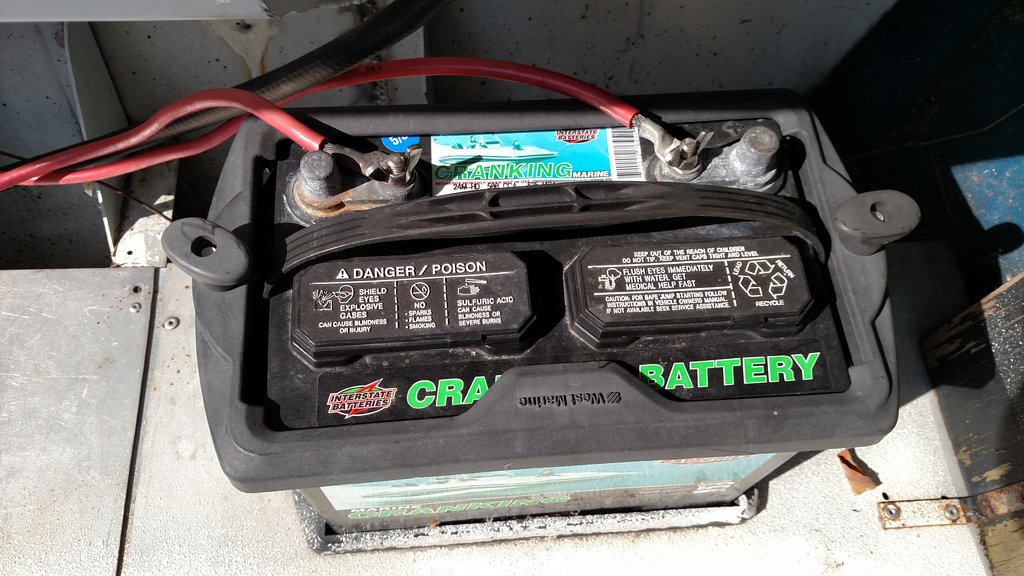

The old 4ga battery wires were very corroded at the battery terminals. Note the red and black on negative. This is a 12v system with 2 batteries in parallel




Share this post


Link to post
Share on other sites
Posted (edited)
1 hour ago, kayaker919 said:

Might be too late, but I recommend the Blue Sea Add-A-Battery to isolate your starter and house batteries when you are using them, but combine them when charging.....it is pretty much idiot proof.  Switch settings are ON-OFF-COMBINE.



https://www.bluesea.com/products/category/35/89/Add-A-Battery_Kits







Thanks for the link! My Perko battery switch is supposed to do the same ithing. Battery 1, 2 or All.



I really like my Blue Seas fuse blocks.

Edited by Todd in NY

Share this post


Link to post
Share on other sites

Thanks for the link! My Perko battery switch is supposed to do the same ithing. Battery 1, 2 or All.

I really like my Blue Seas fuse blocks.
The Add-A-Battery includes an ACR which saves you from having to select "All" when you are running your motor or charging, and then switching to "1" or "2" to keep your "house" circuits from discharging your starting battery. It is mostly a convenience, and another level of protection against accidentally discharging both batteries.

Sent from my SM-T820 using Lake Ontario United mobile app

  • Like 1

Share this post


Link to post
Share on other sites
1 hour ago, rookie fisherman said:

Get some Corrosion X and coat all your electrical connections. Best stuff going.





I'll look into it, thanks!

Share this post


Link to post
Share on other sites
1 hour ago, kayaker919 said:

The Add-A-Battery includes an ACR which saves you from having to select "All" when you are running your motor or charging, and then switching to "1" or "2" to keep your "house" circuits from discharging your starting battery. It is mostly a convenience, and another level of protection against accidentally discharging both batteries.

Sent from my SM-T820 using Lake Ontario United mobile app




Oh, ok. Thanks for the info. I didn't know what the difference was between the two switches.

Share this post


Link to post
Share on other sites

Man the guy who owned that boat before your must be colorblind, everything was red, and he couldn’t have owned a wire cutters, just ball it up & call it good. LOL but you had your hands full with that mess, a lot of people are scared shytless when it comes to the electrical ailments. Congrats an a job well done. Know you will have a much better piece of mind when your out there fishing!!:yes: :yes:

  • Like 1

Share this post


Link to post
Share on other sites
37 minutes ago, pap said:

Man the guy who owned that boat before your must be colorblind, everything was red, and he couldn’t have owned a wire cutters, just ball it up & call it good. LOL but you had your hands full with that mess, a lot of people are scared shytless when it comes to the electrical ailments. Congrats an a job well done. Know you will have a much better piece of mind when your out there fishing!!:yes: :yes:



Thanks Pap! I had no other choice but to rewire the whole boat (other than the factory gauges). Nothing else worked, not the VHF, or the 2 fish Finders I installed. The bilge pump was new last year, so that still worked.



Piece of mind is a beautiful thing out on the water, and being able to trust your equipment.

Share this post


Link to post
Share on other sites

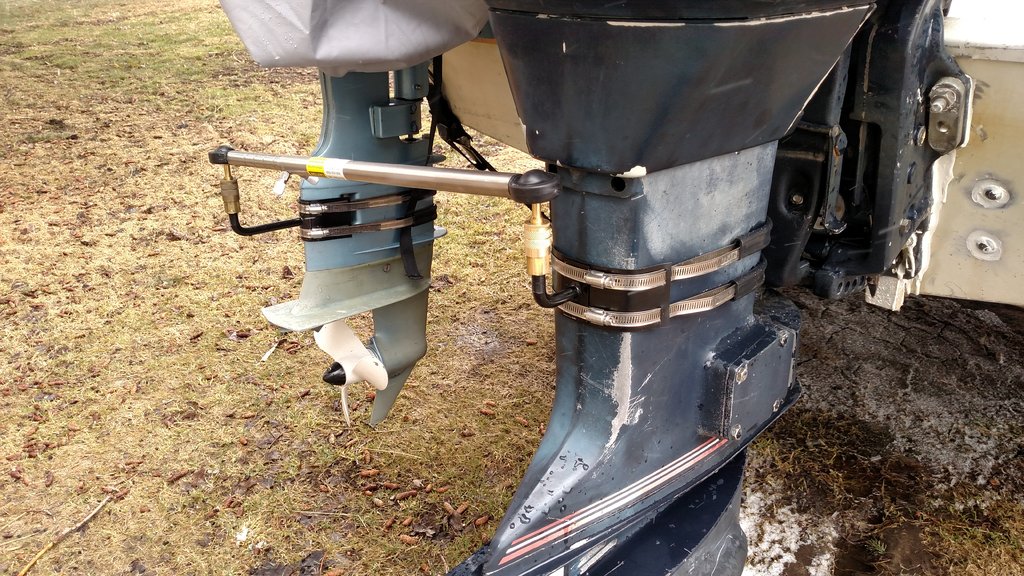

While it was snowing today I installed the EZ Steer bracket on my main motor, then attached the rod to complete the kit.

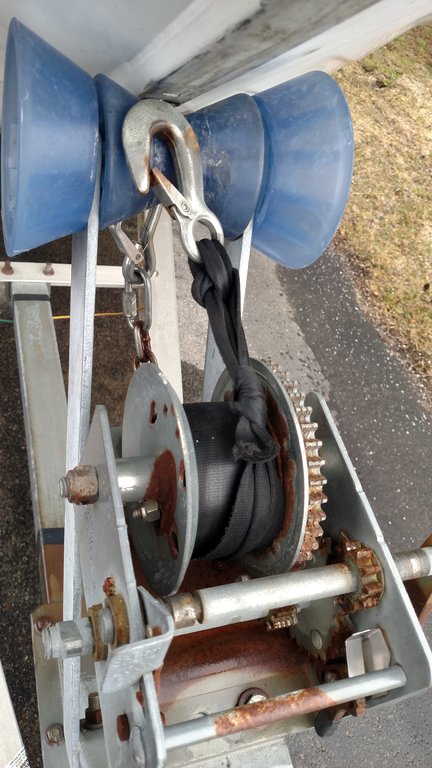

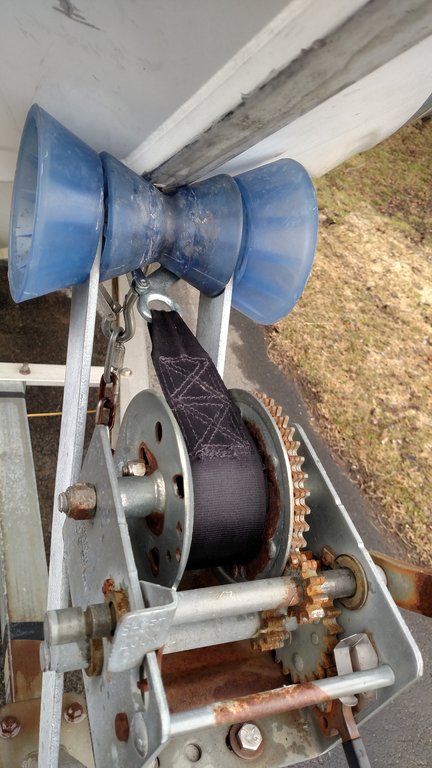

I also replaced the winch strap on the trailer today, because the other strap was tied in a knot at the bow hook.










  • Like 1

Share this post


Link to post
Share on other sites

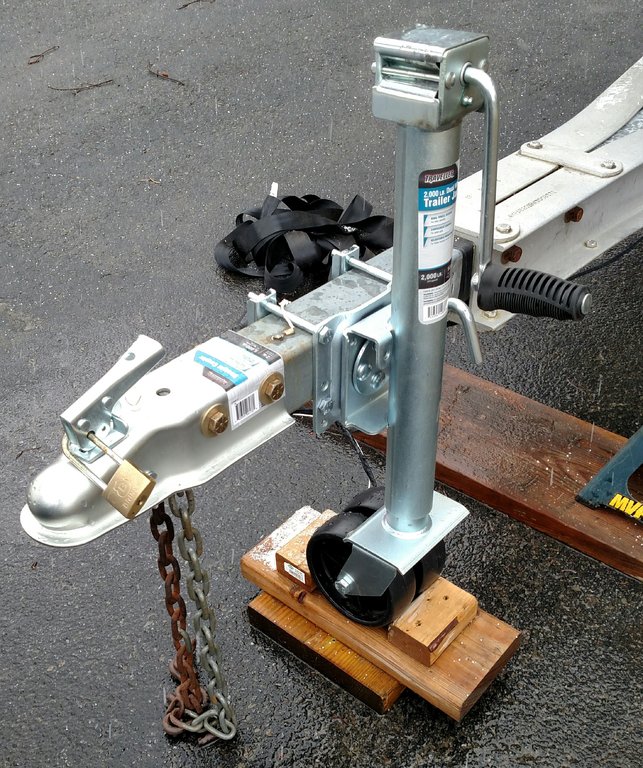

Added a new trailer jack with dual wheels and 14" of vertical travel. I got mine at Tractor Supply because it has a grease fitting at the top. I don't use the wheels and Jack to move my boat and trailer around the driveway. I like the added stability of the dual wheels design, and I like the extra 4" of lift so rain water can drain out of my bigle in the driveway. Thevpivot licking pin on the old Jack was so work out it wouldn't stay locked in the up or down position very well.



I also installed a new trailer coupler. The old one was badly rusted and didn't lock down very easily or securely.




Share this post


Link to post
Share on other sites

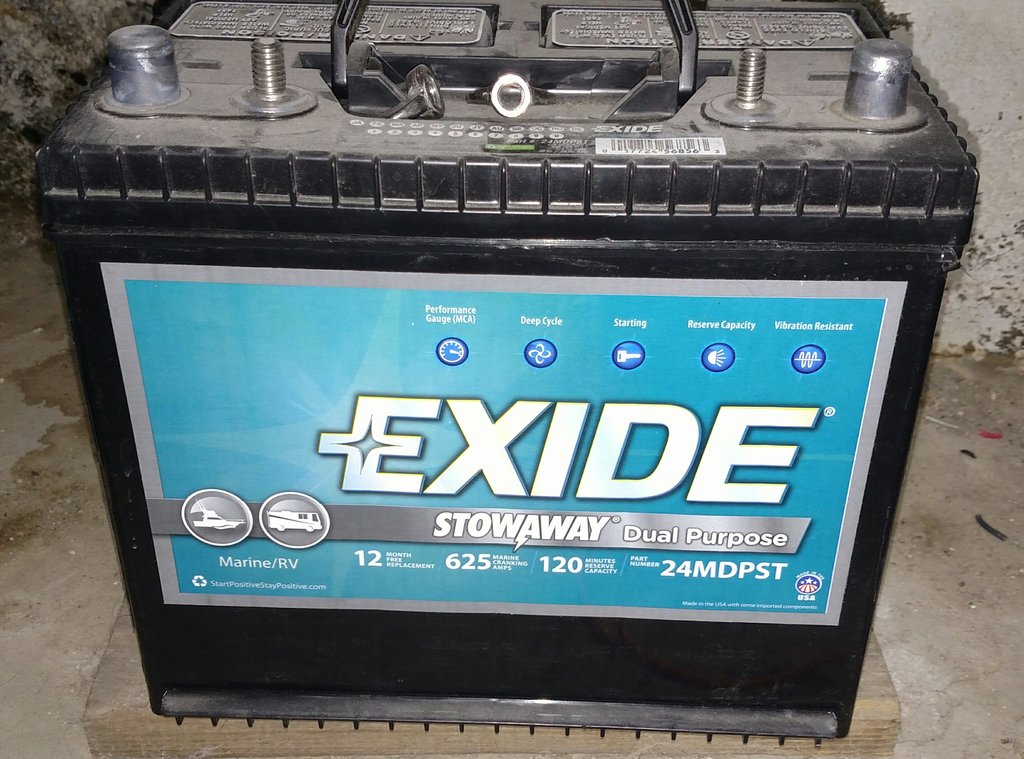

I'm using two of these dual purpose size 24 marine Exide batteries in my Sabre. They're new, and they've been charging in my basement all winter. In fact, they are still on the Pro Sport charger.




Share this post


Link to post
Share on other sites

Todd i notice the battery pics don't have covers over the  battery  post . think its one of the coast guard safety checks . if the battery came out of the battery tray being so close to to the aluminum splash well / transom it has the potential of causing a fire

  • Like 1

Share this post


Link to post
Share on other sites

Thanks, and good eye!



I have post covers for the batteries, and the boat came with West Marine battery trays that secure the batteries to the floor. I'm just using the Walmart and Interstate batteries in my driveway while I complete my projects. There's no need to secure these temporary batteries the way I'll have my permanent batteries set up. I'll have the Exide batteries secured in the trays with the covers on the posts before I launch the boat. I also plan to have the Coast Guard do one of their safety inspections as soon as I finish a few more small projects such as adding the extra kicker motor fuel line and a new anchor/nav mast head light (should  complete those today).
