Trailer surge brake bleeding

Recommended Posts

I have been attempting to bleed the surge brakes on my single axle trailer and after trying several methods can't seem to get

all the air out.Jacked-up trailer and spun wheel activated coupler and wheel did seem to brake.Any thoughts?

Share this post


Link to post
Share on other sites

You might try opening the bleeder and just wait for gravity to do its thing. Just make sure the reservoir is always topped off and the cap should be off as well. Might take 5-10 minutes to get a constant flow going. Other option is a reverse power bleeder ,where your pumping fluid from.the bleeder to the reservoir.

Share this post


Link to post
Share on other sites

I tried the gravity method,no flow.Also used harbor freight pressure bleeder,still did not get good results.This am tried pumping with screw driver from actuator,again little or no flow,pulling out what little hair I have left.Thinking about taking trailer to local  auto repair shop.

Share this post


Link to post
Share on other sites

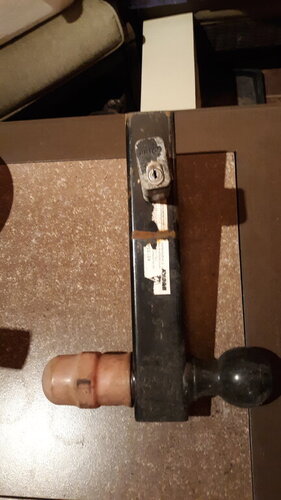

Used a hitch bar as a handle to pump the surge brake.


Share this post


Link to post
Share on other sites

Thanks guys,tried vacuum bleeder,with limited success,will give it another try later this week,at least it keeps me busy these days .

Share this post


Link to post
Share on other sites

Your calipers are probably seized up.... I ended up changing mine and used a come along on the hitch to get a full stroke.

Share this post


Link to post
Share on other sites

sounds very much like the calipers are stopped up but it would be rare for both sides to stop up at the same time. switch sides and use the vacuum pump. the rubber lining of the brake line often separate's and stops up the line. I would remove the rubber line and blow through it to see if its stopped up before changing the caliper. if both sides are the same look for a crimp in metal line. if you have an all rubber line I would check it before doing anything else.

Share this post


Link to post
Share on other sites

Disc brakes?

Share this post


Link to post
Share on other sites

Yes.Finally after several tries I got it done.Hooked -up to truck and worked actuator back and forth,then bled brakes with a pump sprayer and clear hose,worked like a charm.Always amazed at what you find on utube.
