Kicker mounting.

Recommended Posts

Have any of you guys mounted a kicker like this? Thinking about doing this on my rig. I've got the adventure marine kicker mount and an xl shaft suzuki 9.9. Thing I'm worried about it the kicker not being deep enough to steer effectively.


Edited by jerryriggin

Share this post


Link to post
Share on other sites

It looks interesting. Is this mounted on the lower unit of the main engine?

The kicker seems to be better than 2 feet behind the boat that may cause it to come out of the water in wavy water.

Share this post


Link to post
Share on other sites

From those pics it doesn’t seem low enough. The upper trim section that’s supposed to be at least below the boar doesn’t seem to even make it to the bottom.


Sent from my iPad using Lake Ontario United

Share this post


Link to post
Share on other sites

Love to here Hank or Tommy’s opinion.
Seems like it could provide a lot of stress on the transom?


Sent from my iPhone using Lake Ontario United

  • Like 1

Share this post


Link to post
Share on other sites

Not sure I like it either. Would have been better to hang the motor port side, bracket lower and not with so much stand off.

Share this post


Link to post
Share on other sites

I can think of several problems with this setup. First , because of the distance between the transom and the engine, the additional leverage will create a lot of stress on the transom.(you can easily pick up a gallon of milk with one hand,now try the same with that gallon on a 2 foot pole). Second, it will come out of the water in the waves. Third,is potential lower unit prop damage if the lower unit is raised with the kicker down.

I would say that this is a no-no.

  • Like 1

Share this post


Link to post
Share on other sites

In the pic it looks as though the motor bracket was originally located on the port side of the boat and there is plenty of room there. That is where I would be putting it.

Share this post


Link to post
Share on other sites
1 hour ago, Sk8man said:

In the pic it looks as though the motor bracket was originally located on the port side of the boat and there is plenty of room there. That is where I would be putting it.

Was thinking the same thing or it could have been a ladder. Regardless I would mount out there too

Share this post


Link to post
Share on other sites

Also think a vertical lift bracket tucked closer to transom would be a better choice.  Likely would save weight and give better geometry plus get kicker deeper.  From the picture looks like quite a lot of weight added up high and to the rear of this boat- could effect handling and capacity.

Share this post


Link to post
Share on other sites

Only time I've seen center mounted kickers were all on a shaft drive boats. I wouldn't even consider it with a I/O setup like that picture above. Not to mention you would have to run some type of kicker AP or electro steer setup as you likely wouldn't be able to connect to the main for steering. The offset from transom would be another concern as others mentioned above, I don't see the benefits.

  • Like 1

Share this post


Link to post
Share on other sites

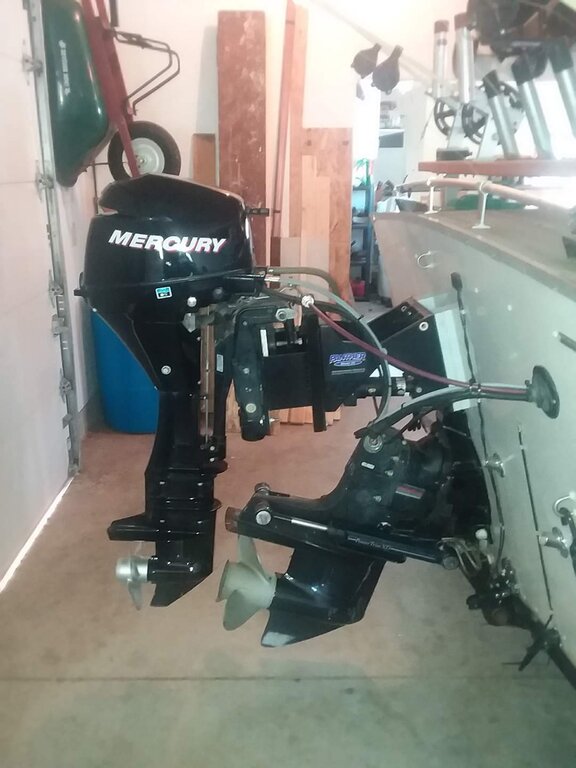

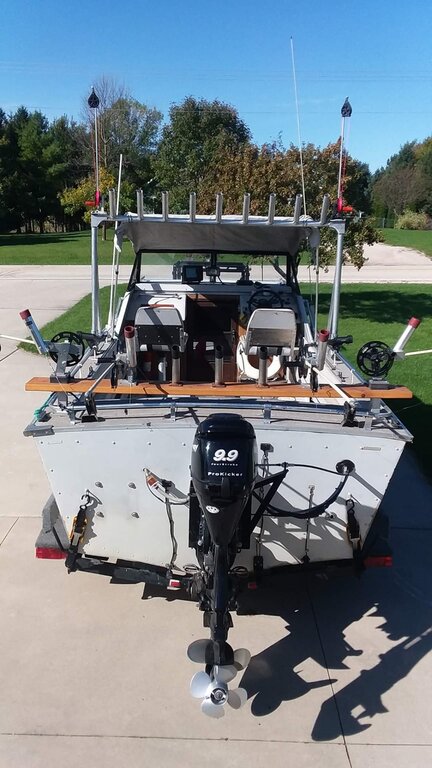

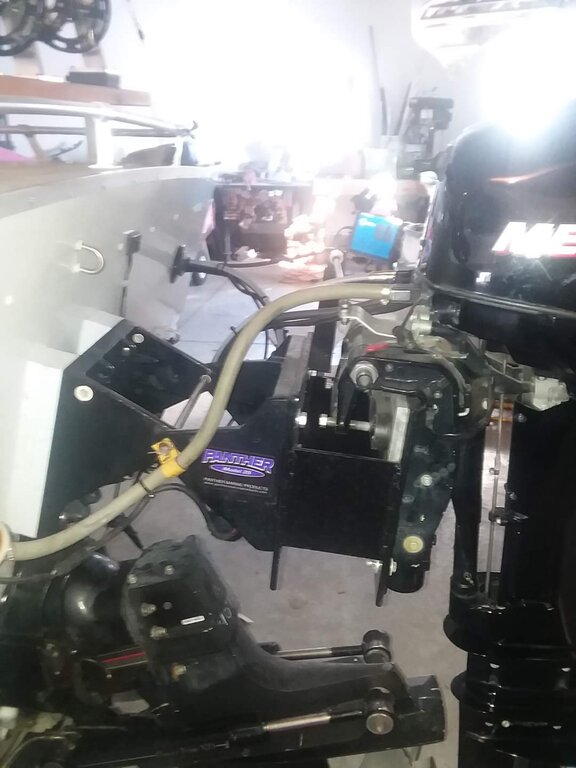

Look at mine, it's spaced just enough to clear at full tilt and down enough for the cavitation plate to be even with the keel .



Share this post


Link to post
Share on other sites
On 2/28/2020 at 7:21 AM, Sk8man said:

In the pic it looks as though the motor bracket was originally located on the port side of the boat and there is plenty of room there. That is where I would be putting it.

X2.  You are just making everything more diffcult with that setup.

Share this post


Link to post
Share on other sites
Posted (edited)

:yes:

Edited by Sharky
doesn't apply to me.

Share this post


Link to post
Share on other sites
10 minutes ago, Sharky said:

? How so?

The ability to utilize ready made steering attachments.

The ability to raise and lower the motors independently of one another.

And lastly I dont know what the transom looks like on that boat but that motor that far away from the transom is going to have a significant amount of leverage.  I certainly wouldnt trailer it anywhere with the kicker hanging back there.  If it was me I would do a panther adjustable mount on the port side.  If you are worried about getting the motor down far enough buy the 16 inch.  slap on an ezsteer and go fishing.  The bad about the port side mounting may be the boat may list to that side due to the weight of the kicker.  Easily remedied perhaps buy relocating some gear???
That setup at some point is going to cost you money when that lower unit comes up when the kicker is down.

  • Like 1

Share this post


Link to post
Share on other sites
